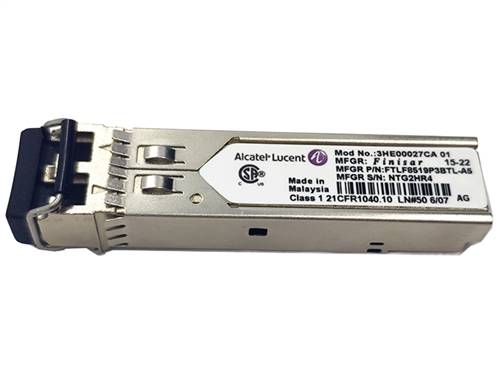

Alcatel-Lucent 3HE00027CA 1000BASE-SX SFP Transceiver Module

This Alcatel-Lucent 3HE00027CA SFP transceiver provides 1000Base-SX throughput up to 550m over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. It is comply with MSA (Multi-Source Agreement) standards to ensure seamless network integration. This transceiver is Trade Agreements Act (TAA) compliant.

Specifications

• Manufacturer: Alcatel-Lucent
• Part Number: 3HE00027CA
• Form Factor: SFP
• Data Rate: 1.25Gb/s
• Wavelength: 850 nm
• Fiber Type: MMF
• Max Distance: 550 m
• Optical Components: VCSEL/PIN
• Transmitter Power: -9 ~ -3 dBm
• Extinction ratio: > 9 dB
• Receiver Sensitivity: < -18 dBm
• Receiver Overload: > 0 dBm
• Connector: LC Duplex
• Digital Diagnostic Monitoring: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Weight: 0.025 kg
• Applications
• 1x Fiber Channel, Switch to Switch Interface
• Gigabit Ethernet, Switched Backplane Applications
• Router/Server Interface, Other Optical Links
• Compliance
• IEC/EN 61000-4-2,IEC-60825
• FDA 21CFR 1040.10 and 1040.11
• RoHS
