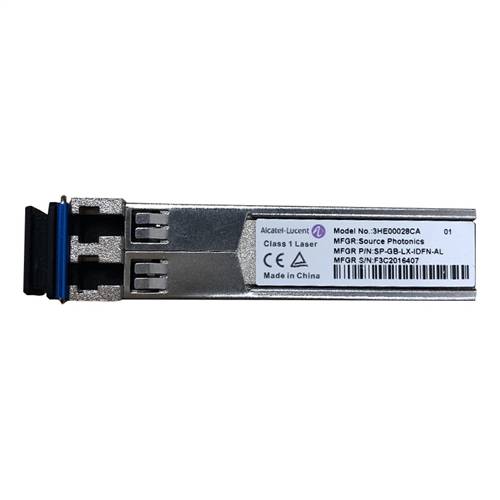

Alcatel-Lucent 3HE00028CA SFP-GIGE-LX-LC ROHS 6/6 DDM Optical Transceiver

This Alcatel-Lucent 3HE00028CA SFP transceiver provides 1000Base-LX throughput up to 10km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant.

Specifications

• Manufacturer: Alcatel-Lucent
• Part Number: 3HE00028CA
• Form Factor: SFP
• Data Rate: 1.25Gb/s
• Wavelength: 1310 nm
• Fiber Type: SMF
• Max Distance: 10 km
• Optical Components: FP/PIN
• Transmitter Power: -9 ~ -3 dBm
• Extinction ratio: > 9 dB
• Receiver Sensitivity: < -22 dBm
• Receiver Overload: > 0 dBm
• Connector: LC Duplex
• Digital Diagnostic Monitoring: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Weight: 0.025 kg
• Application: Gigabit Fibre Channel, Gigabit Ethernet
• Compliance
• IEC/EN 61000-4-2,IEC-60825
• FDA 21CFR 1040.10 and 1040.11
• RoHS
