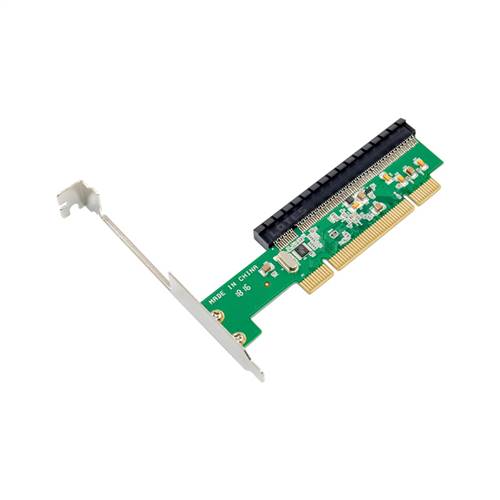

The ADP-PCI-PX16 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x16 slot in its place.

The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.

Features

• Plug & Play
• PCI 32 bit card for PCI Express x1, x4, x8 or x16
• PCI Express 1 Lane Port (1 virtual channel), 2.5Gbps per direction
• PCI Express Specification Version 1.0 Compliant
• PCI Specification Version 2.3 Compliant
• Combination low profile PCI 32 bit host card
• Support PCI slot 3.3V/1A, 3.3Vaux/100mA, 5V/5A and 12V/500m
• Support: Windows 2000/NT/Server 2003/XP/Vista/Linux

Specifications

• Chipset: PLX8112
• Bus Interface: PCI v.2.3: 32bits, up to 66MHz
• Connectors: PCIe x16, compatible with PCI Express x1, x4, x8
• Power: PCI slot 3.3V/1A, 3.3Vaux/100mA, 5V/5A and 12V/500m
• System: Windows 8.1/Win 8/Win 7/Vista/XP/Server 2003/2000/NT/ Dos/ Linux
