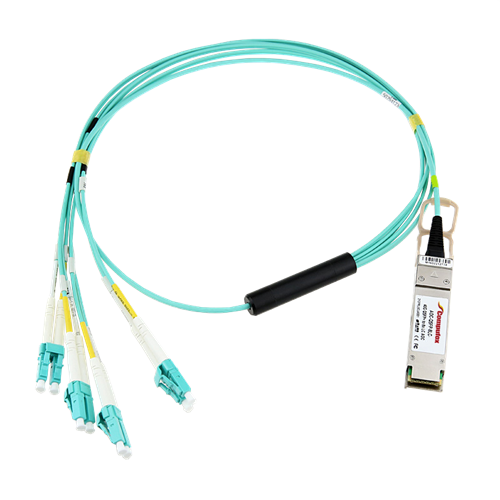

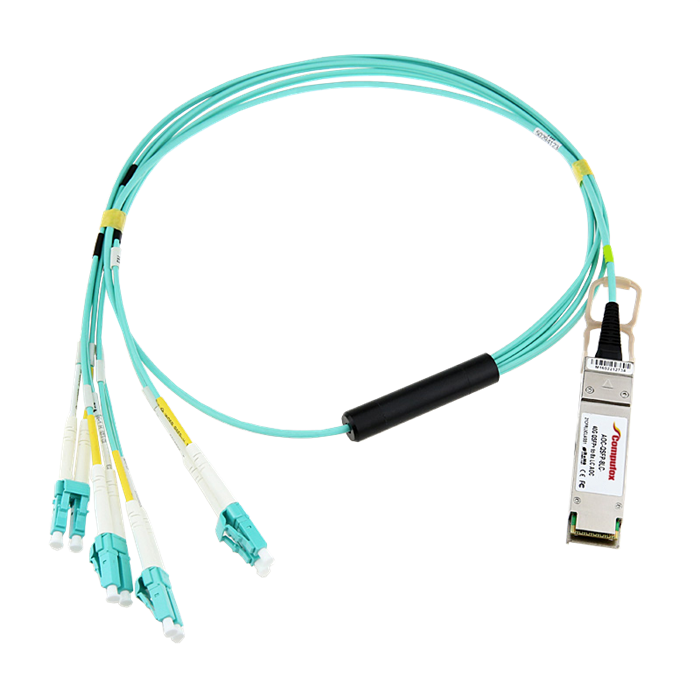

Home > Active Optical Cables > Datacom AOC > AOC-QSFP-8LC | QSFP+ to 8 x LC AOC
Alternative Views:	Our Price: $280.00 Warranty: 1 Year Warranty Availability: In Stock Leadtime: Usually ships in 5-7 days Product Code: AOC-QSFP-8LC Specify Equipment for 40G QSFP+ Side Compatibility: Select Length*: -- Please Select -- 1m (3ft) 2m (7ft) [Add $4.00] 3m (10ft) [Add $8.00] 5m (16ft) [Add $16.00] 10m (33ft) [Add $36.00] 15m (49ft) [Add $56.00] 20m (66ft) [Add $76.00] 30m (98ft) [Add $116.00] 50m (164ft) [Add $196.00] 70m (230ft) [Add $276.00] 100m (328ft) [Add $396.00] Labeling Options: Compufox Logo Generic Label - No Logo (3 to 4 days to ship) Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00] Qty:

Description   SFP+ to 8 x LC Breakout Active Optical Cable. QSFP+ to 8 x LC Connector Breakout Active Optical Cable (AOC) are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. QSFP+ Breakout Cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s. QSFP+ Breakout Cable are suitable for short distances and offer a highly cost-effective way to connect within racks and across adjacent racks. This product is a high data rate parallel active optical cable, to overcome the bandwidth limitation of traditional copper cable. Features Transmission data rate up to 10.3Gbit/s per channel Connector 1: QSFP+ Connector 2: LC Connector(8) Full duplex 4 channel 850nm parallel active optical cable Available lengths (in meters): 1, 2, 3, 4, 5.... SFF-8436 QSFP+ compliant housing and hot pluggable electrical interface Differential AC-coupled high speed data interface Management Interface and digital diagnostic monitoring(DDM) through I2C Commercial temperature range (COM): 0 to 70°C Support Rx output pre-emphasis Housing isolated from connector ground Low power consumption 3.3V power supply voltage RoHS 6 compliant Applications Infiniband transmission at 4ch SDR(2.5Gbit/s), DDR(5Gbit/s) and QDR(10Gbit/s) 40GBASE-SR4 40G Ethernet 4G/ 8G/ 10G Fibre Channel Proprietary high speed, high density data transmission Creating a breakout cable with four Duplex LC/SC/ST/FC connectors for port expander applications High performance computing, server and data storage SPECIFICATIONS Connector A 40G QSFP+ Connector B 8x LC (4 Duplex LC) Max Data Rate 40Gbps Max Length 100m (328ft) Wavelength 850nm Media OM3 MMF Temperature 0 to 70°C (32 to 158°F) Power Consumption < 1.5W (QSFP+)
