Broadcom® BCM957414A4142CC Ethernet Network Interface Card, 25G Dual-Port SFP28, PCIe 3.0 x 8
Broadcom® BCM957414A4142CC Ethernet Network Interface Card, 25G Dual-Port SFP28, PCIe 3.0 x 8

Alternative Views:
Our Price: $140.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Days


Product Code: BCM957414A4142CC
Qty:

Description

Broadcom® BCM957414A4142CC Ethernet Network Interface Card, 25G Dual-Port SFP28, PCIe 3.0 x 8, Tall&Short Bracket.

The Broadcom® BCM957414A4142CC is a dual-port 25 Gb/s or 10 Gb/s, PCI-Express 3.0 x8 Network Interface Card that supports both SFP28/ SFP+ optical modules and copper-direct attach cable. The card uses the Broadcom BCM57414 25GbE MAC controller with the integrated dual-channel 25GbE SFI transceiver. It supports RoCE, SDN, and NFV for efficient network management.
 Based on Broadcom’s scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme®-E Series BCM57414 50G PCIe 3.0 Ethernet controller is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation, and data analytics.

Specifications

Ports Dual

ASIC BCM57414

Data Rate Per Port 25/10G/1GbE

System Interface Type PCIe 3.0 x 8

Connector Type SFP28

Bracket Height Full Height and Low Profile

RoCE Yes

SR-IOV Yes

NVGER Yes

GENEVE Yes

VXLAN Yes

DPDK Yes

NPAR Yes

NVMe-oF Yes

TSO Yes

OS Support Microsoft Windows, Red Hat Enterprise Linux, and so on

Operating Temperature 0 to 55 °C (32 to 131 °F)

Storage Temperature -40 to 70 °C (-40 to 158 °F)


Product Spotlights

  • Networking and Virtualization
    • RDMA over Converged Ethernet (RoCE)
    • VXLAN, NVGRE, GRE Encap/Decap
    • Advanced Congestion Avoidance
    • Multi-Queue, NetQueue, and VMQ
    • Single Root I/O Virtualization
    • Network boot-PXE, UEFI
    • Wake-on-LAN
  • Stateless Offloads and Flow Processing
    • IP/TCP/UDP Checksum Offload
    • TCP Segmentation Offload
    • Receive-side Scaling (RSS)
    • Transmit-side Scaling (TSS)
    • Large Send Offload (LSO)
    • Large Receive Offload (LRO)
    • PFC, ETS, QCN, DCBx
  • Manageability and Platform Security
    • Interrupt Coalescing
    • ISCSI Boot
    • Tunnel-aware Stateless Offloads.
    • SMBus 2.0.
    • MCTP over SMBus
    • Function Level Reset (FLR)
    • MSI and MSI-X

Connectivity Solutions

25G Ethernet Switch to 25G SFP28 NIC with DAC

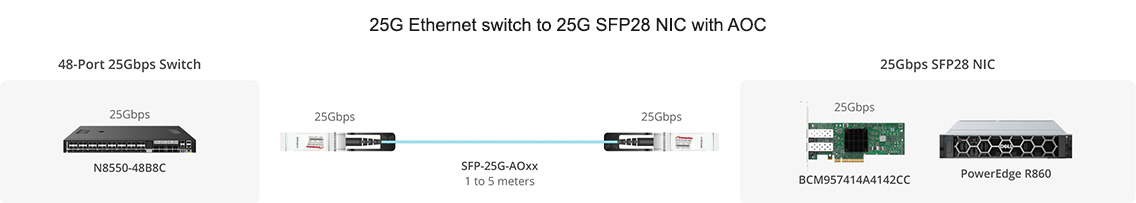

25G Ethernet Switch to 25G SFP28 NIC with AOC

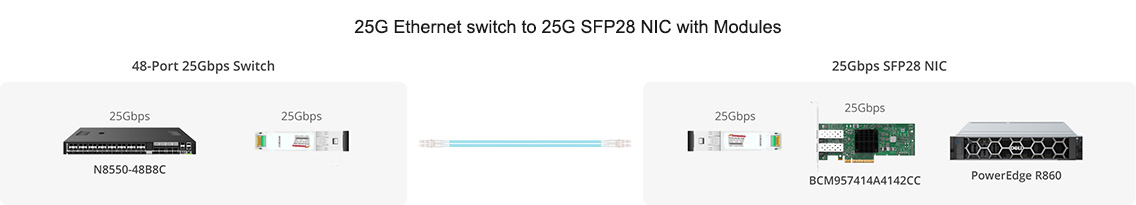

25G Ethernet Switch to 25G SFP28 NIC with Modules


Features

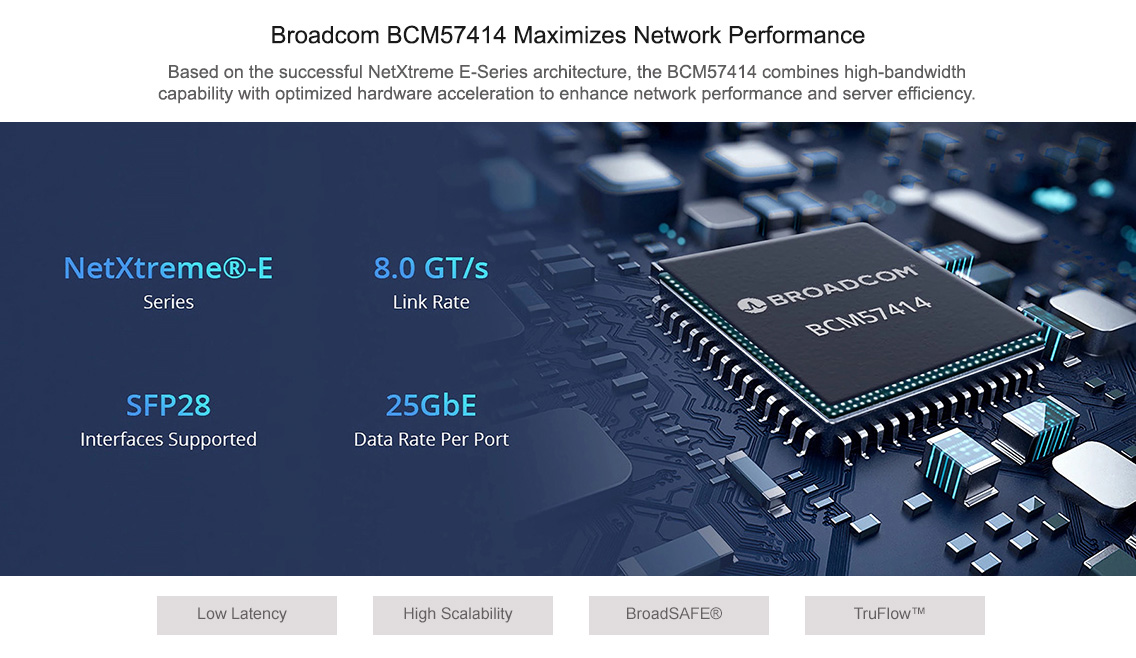

Broadcom BCM57414 Maximizes Network Performance

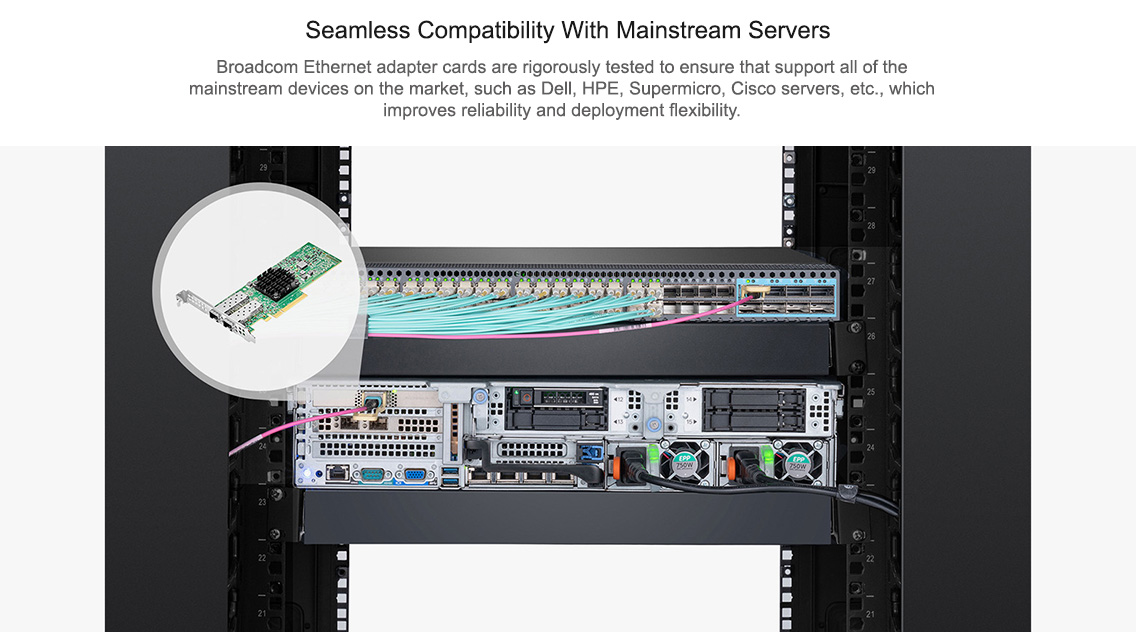

Seamless Compatibility With Mainstream Servers

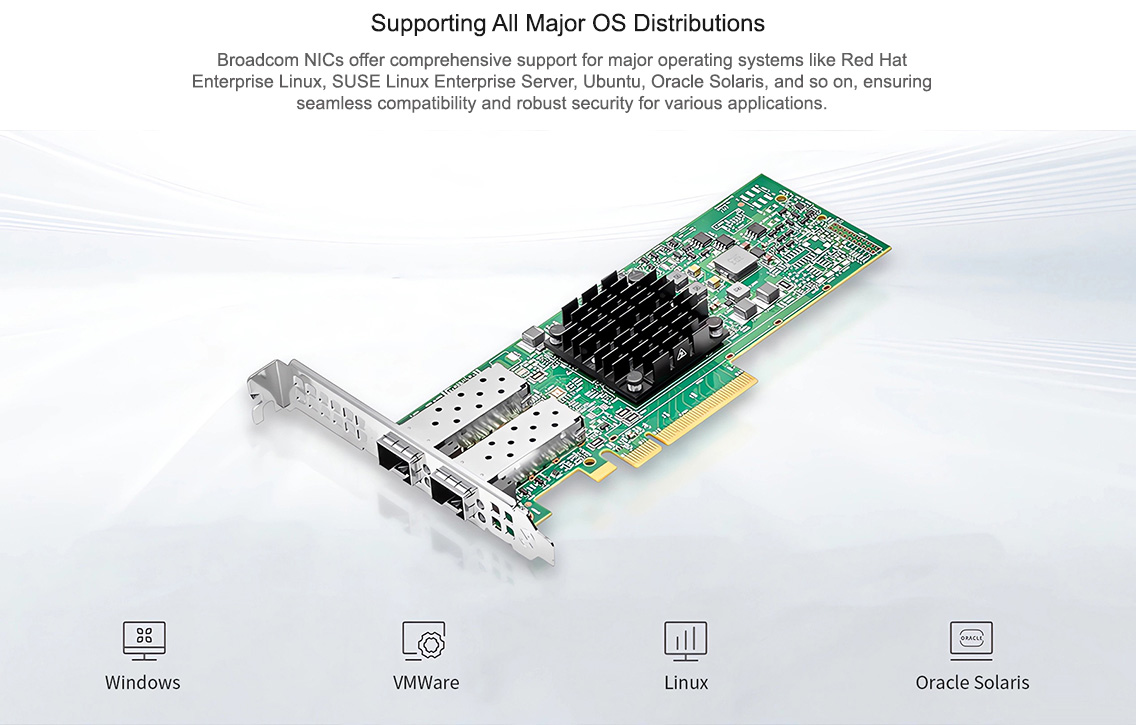

Supporting All Major OS Distributions
