Broadcom® BCM957416A4160C Ethernet Network Interface Card, 10G Dual-Port RJ45, PCIe 3.0 x 8
Broadcom® BCM957416A4160C Ethernet Network Interface Card, 10G Dual-Port RJ45, PCIe 3.0 x 8

Alternative Views:
Our Price: $185.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Days


Product Code: BCM957416A4160C
Qty:

Description

Broadcom® BCM957416A4160C Ethernet Network Interface Card, 10G Dual-Port RJ45, PCIe 3.0 x 8, Tall&Short Bracket.

The Broadcom® BCM957416A4160C is a dual-port 10GBASE-T, PCI-Express 3.0 x8 Network Interface Card that supports a dual-port 10GBASE-T media interface that is fully compliant with the IEEE 802.3an standard. The card uses the Broadcom BCM57416 Ethernet controller with the integrated dual-channel 10GBASE-T transceiver. It supports RoCE, SDN, and NFV for efficient network management.
Based on Broadcom’s scalable 10/25/50/100/200G Ethernet controller architecture, the P210TP 2x10GBASE-T PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation, and data analytics.

Specifications

Ports Dual

ASIC BCM57416

Data Rate Per Port 10/1GbE

System Interface Type PCIe 3.0 x 8

Connector Type RJ45

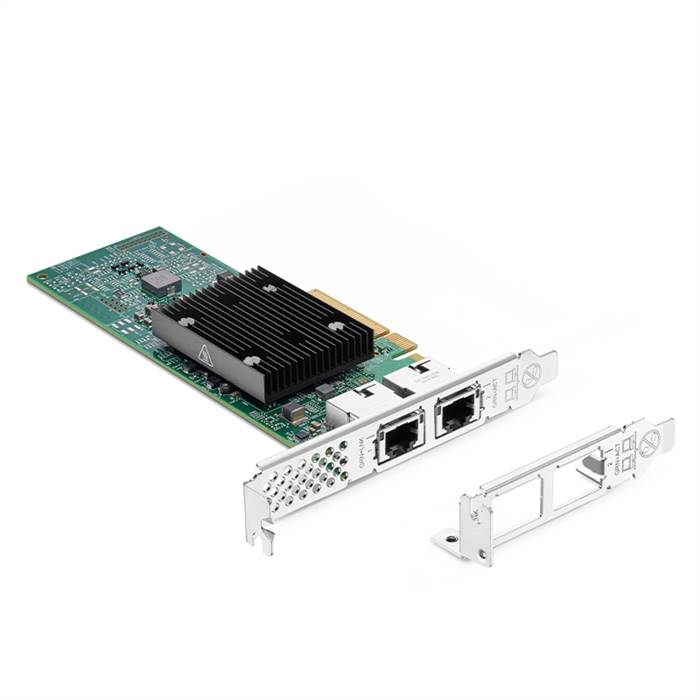

Bracket Height Full Height and Low Profile

RoCE Yes

SR-IOV Yes

NVGER Yes

GENEVE Yes

VXLAN Yes

DPDK Yes

NPAR Yes

NVMe-oF Yes

TSO Yes

OS Support Microsoft Windows, Red Hat Enterprise Linux, and so on

Operating Temperature 0 to 55 °C (32 to 131 °F)

Storage Temperature -40 to 70 °C (-40 to 158 °F)


Product Spotlights

  • Networking and Virtualization
    • RDMA over Converged Ethernet (RoCE)
    • VXLAN, NVGRE, GRE Encap/Decap
    • Advanced Congestion Avoidance
    • Multi-Queue, NetQueue, and VMQ
    • Single Root I/O Virtualization
    • Network Boot-PXE, UEFI
    • Wake-on-LAN
  • Stateless Offloads and Flow Processing
    • IP/TCP/UDP Checksum Offload
    • TCP Segmentation Offload
    • Receive-side Scaling (RSS)
    • Transmit-side Scaling (TSS)
    • Large Send Offload (LSO)
    • Large Receive Offload (LRO)
    • PFC, ETS, QCN, Manageability and Platform Security
  • Manageability and Platform Security
    • Interrupt Coalescing
    • ISCSI Boot
    • Tunnel-aware Stateless Offloads
    • SMBus 2.0
    • MCTP over SMBus
    • Function Level Reset (FLR)
    • MSI and MSI-X

Connectivity Solutions

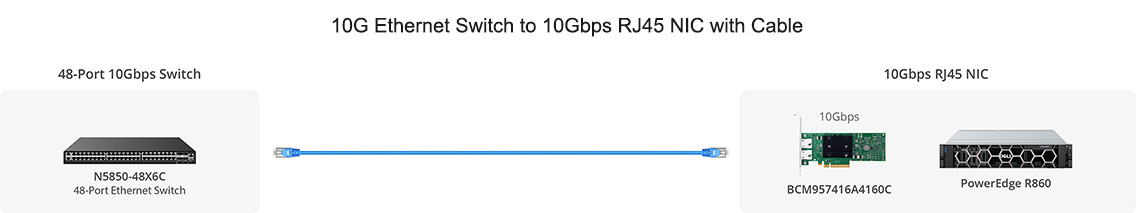

10G Ethernet Switch to 10Gbps RJ45 NIC with Cable


Features

Broadcom BCM57416 Maximizes Network Performance

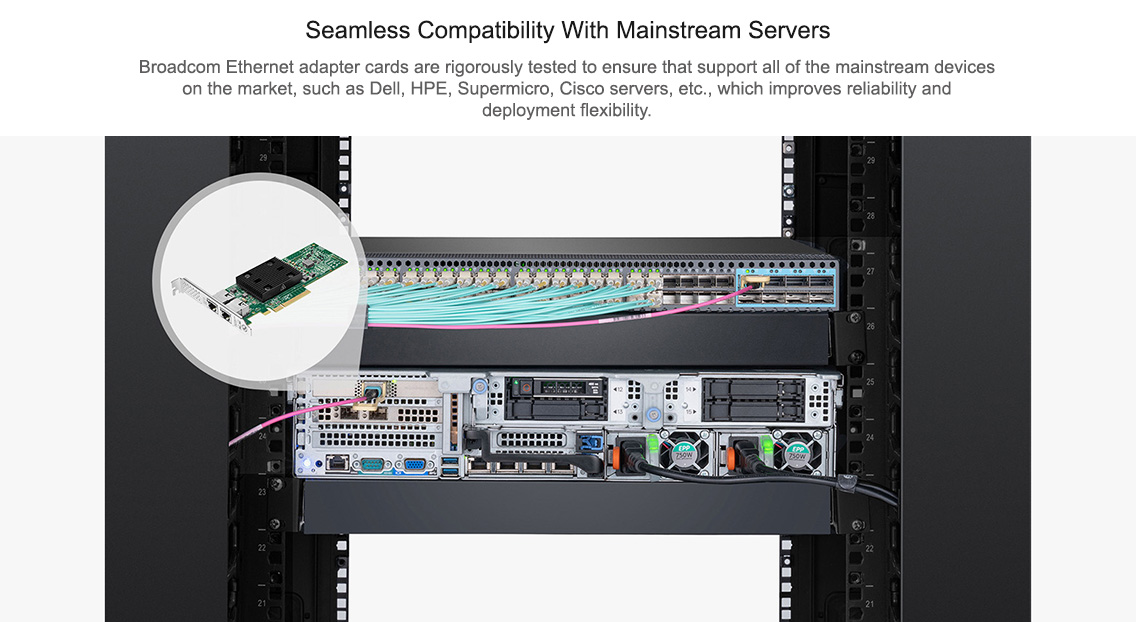

Seamless Compatibility With Mainstream Servers


Supporting All Major OS Distributions
