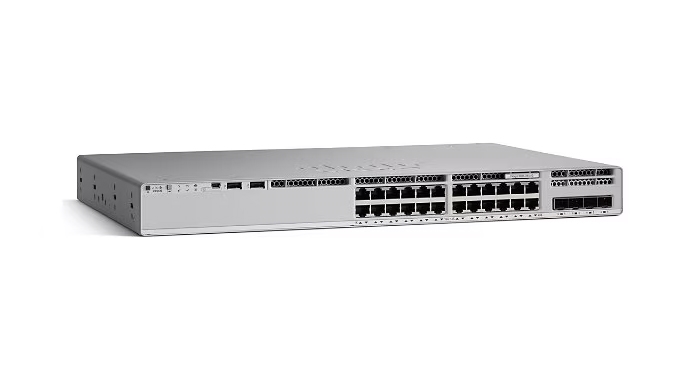

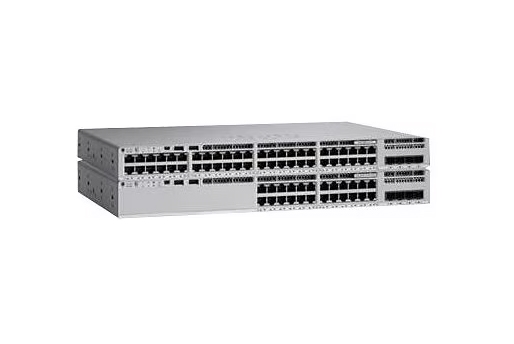

The Cisco C9200L-24T-4G-E is a 24-port Layer 3 Gigabit Ethernet switch with four 1G SFP uplink ports, featuring a switching capacity of 56 Gbps, a forwarding rate of 83.33 Mpps, and a stacking bandwidth of 80 Gbps. It supports Cisco IOS XE software, is stackable, rack-mountable, and runs on an internal power supply with 100-240 VAC input. This model is a fixed-uplink device that does not support PoE and runs Cisco Network Essentials software.

Here are the detailed specifications for the C9200L-24T-4G-E:

General

• Device Type: Switch – 24 ports – L3 – stackable
• Subtype: Gigabit Ethernet
• Enclosure Type: Rack-mountable

Ports & Uplinks

• Ports: 24 x 10/100/1000 Ethernet ports
• Uplinks: 4 x Gigabit SFP (Small Form-Factor Pluggable) ports

Performance

• Switching Capacity: 56 Gbps
• Forwarding Rate: 83.33 million packets per second (Mpps)
• Stacking Bandwidth: 80 Gbps

Hardware & Software

• Layer Support: Layer 3 (includes static routing, OSPF, EIGRP, and RIP)
• Software: Runs Cisco IOS XE
• Power: Internal power supply with 100-240 VAC input

Physical & Environmental

• Dimensions: 1.73 x 17.5 x 11.3 inches (44 x 445 x 288 mm)
• Weight: 7.27 lbs (3.3 kg)
• Environmental: Operates in temperatures from 23°F to 113°F (–5°C to 45°C)

Compatible Transceivers

The Cisco C9200L-24T-4G-E supports 1G SFP modules for its four fixed 1G SFP uplink ports.
