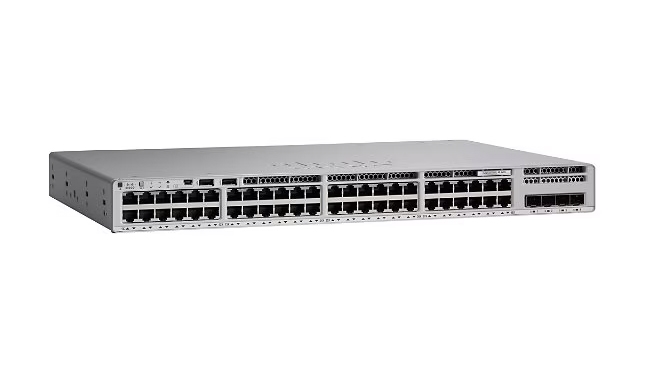

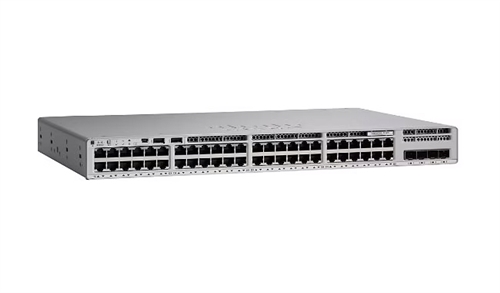

The Cisco C9200L-48T-4G-E is a Cisco Catalyst 9200 Series 48-port gigabit Ethernet switch with four 1G SFP uplink ports. Key specifications include a 104 Gbps switching capacity, 154.76 Mpps forwarding rate, 4GB of flash memory, 2GB of DRAM, and 48 x 10/100/1000 RJ-45 ports. It supports Cisco Network Essentials software, offers 80 Gbps of stacking bandwidth with StackWise-80, and features a modular power supply and fixed redundant fans.

Ports

• Total Ports: 48 x 10/100/1000 Gigabit Ethernet ports
• Uplink Ports: 4 x 1 Gigabit SFP uplink ports
• Management/Other Ports: 1 x RJ-45 Console, 1 x Gigabit Management, 2 x USB ports

Performance & Capacity

• Switching Capacity: 104 Gbps (upgradeable to 184 Gbps with stacking)
• Forwarding Rate: 154.76 Mpps
• Stacking Bandwidth: Up to 80 Gbps (StackWise-80)
• Memory: 2 GB DRAM, 4 GB Flash
• VLANs: Supports up to 4,096 VLAN IDs

Features & Management

• Software: Cisco Catalyst 9200L with Network Essentials
• Layer Support: Layer 2 and Layer 3
• Redundancy: Supports dual redundancy for power supplies and fans
• Power Supply: Internal, modular (PWR-C5-125WAC is the default primary AC power supply)

Physical Characteristics

• Dimensions: 1.73 x 17.5 x 11.3 inches (4.4 x 44.5 x 28.8 cm)
• Weight: 4.35 Kg (9.59 lbs)

Compatible Transceivers

The C9200L-48T-4G-E switch, with its fixed 4x1G uplink ports, is compatible with 1G SFP modules.
