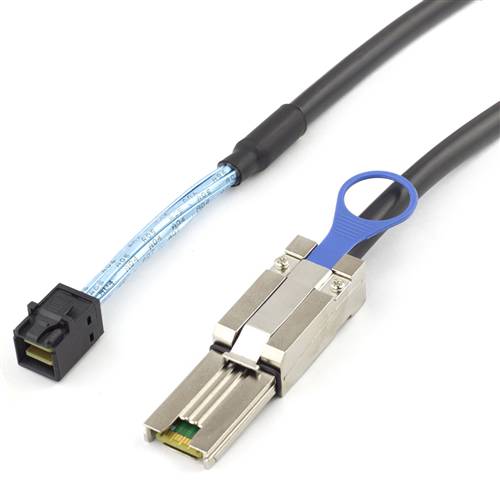

Internal HD Mini SAS SFF-8643 4i to External Mini SAS SFF-8088 26P Cable

The Internal HD Mini SAS SFF-8643 4i to External Mini SAS SFF-8088 26P Cable is a high-performance interconnect solution designed to bridge internal server storage systems with external storage devices or enclosures. This cable converts the high-density SFF-8643 internal interface to the standardized SFF-8088 external interface, enabling seamless data transmission between SAS/SATA hosts and external storage infrastructure. Engineered for reliability and signal integrity, it supports high-speed data transfer rates and is ideal for data center expansions, storage area networks (SAN), and server-to-storage connectivity.

Features

• Hybrid Internal/External Design: Connects internal SFF-8643 ports to external SFF-8088 interfaces for flexible storage configurations.
• High-Speed Performance: Supports SAS-3 12Gb/s and SAS-2 6Gb/s data rates, ensuring compatibility with high-speed storage protocols.
• Dual Protocol Support: Compatible with SAS and SATA protocols, facilitating mixed storage environments.
• Superior Shielding: Features robust EMI/RFI shielding (e.g., braided shielding and EMI gaskets) to minimize signal interference in electrically noisy environments.
• Secure Locking Mechanism: External SFF-8088 connector incorporates a durable metal shell and secure latching for vibration-resistant and reliable connections.
• Durable Construction: Built with high-quality materials to withstand repeated mating cycles and harsh operating conditions.
• Hot-Swap Capable: Supports hot-swapping for maintenance and upgrades without system shutdown.

Specifications

• Product Model: Internal HD Mini SAS to External Mini SAS Cable
• Host Connector: Internal HD Mini SAS SFF-8643, 4i, Male
• Device Connector: External Mini SAS SFF-8088, 26-Position, Male, Metal Shell
• Data Rate Support: Up to 12.0 Gb/s (SAS-3), 6.0 Gb/s (SAS-2)
• Supported Protocols: SAS-3/2/1, SATA 3.2
• Shielding: Individual pair shielding with overall braided shield and EMI protection
• Cable Type: Shielded external-grade cable assembly
• Cable Length: 0.5m, 1.0m, 2.0m, 3.0m (standard options)
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles (SFF-8643), 1,500 cycles (SFF-8088)
• Voltage Rating: 30V per contact
• EMI Compliance: Meets FCC and IEC standards for electromagnetic compatibility.

Applications

• Data Center Storage Expansion: Connecting internal servers to external JBODs/RAID arrays.
• Storage Area Networks (SAN): Facilitating high-speed links between servers and shared storage systems.
• Server Backup Solutions: Ideal for integrating external backup drives or tape libraries.
• OEM and System Integration: Used by manufacturers to build customized storage solutions with internal-to-external connectivity.
• Disaster Recovery Systems: Supporting redundant storage configurations for data replication.
• Test and Development Labs: Enabling flexible connections between internal hardware and external test equipment.
• High-Availability Clusters: Providing reliable links for clustered storage environments requiring external access.
