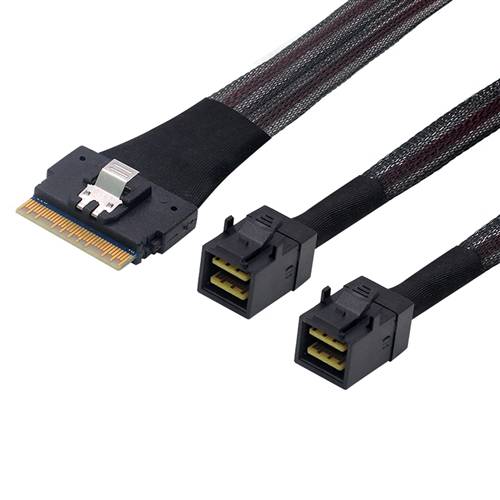

SlimSAS SFF-8654 8i to 2 Internal HD Mini SAS SFF-8643 4x 36P Cable

The SlimSAS SFF-8654 8i to 2 Internal HD Mini SAS SFF-8643 4x 36P Cable is a high-performance breakout solution designed for modern enterprise storage systems and data center environments. This cable efficiently converts a single SlimSAS 8i host interface into two independent Internal HD Mini SAS 4x interfaces, providing reliable high-speed data transmission while maintaining excellent signal integrity. Engineered for high-density server configurations, this solution offers flexible connectivity options for integrating modern storage hosts with legacy SAS devices, making it ideal for storage expansion and infrastructure upgrades in demanding computing environments.

Features

• High-Density Breakout Design: Converts one 8i host port into two 4x Mini SAS interfaces
• High-Speed Performance: Supports data rates up to 24 Gbps (SAS 4.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching
• Reliable Connection: Straight connectors ensure secure mating and stable connections
• Space-Efficient Design: Compact connectors enable high-density server deployments
• Flexible Protocol Support: Compatible with SAS and SATA protocols
• Robust Construction: Quality materials ensure long-term reliability

Specifications

• Product Model: SlimSAS to Dual Mini SAS Cable
• Host Connector: SlimSAS SFF-8654 8i, Male, Straight
• Device Connectors: 2x Internal HD Mini SAS SFF-8643 4x, 36-Position, Male, Straight
• Data Rate Support: Up to 24 Gbps (SAS 4.0), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 4.0/3.0, SATA 3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m,  1.0m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• Data Center Infrastructure: Connecting modern hosts to legacy storage systems in hyperscale environments
• Storage Array Expansion: Ideal for JBOD configurations requiring protocol conversion
• Server Upgrade Projects: Enabling integration of new servers with existing Mini SAS infrastructure
• Enterprise Storage Systems: Suitable for large-scale deployments requiring reliable SAS connectivity
• High-Density Server Racks: Perfect for space-constrained server configurations
• Test and Development: Useful for laboratory environments requiring interface conversion
• OEM Server Solutions: Designed for server manufacturers needing backward compatibility
