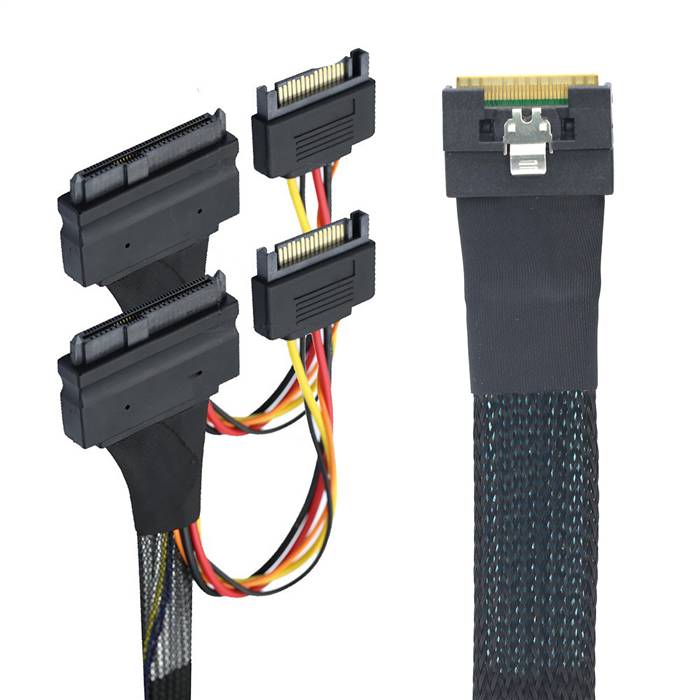

Fully Enclosed SlimSAS SFF-8654 8i to 2 U.2 SFF-8639 with 15P Power Cable

The Fully Enclosed SlimSAS SFF-8654 8i to 2 U.2 SFF-8639 with 15P Power Cable is a ruggedized hybrid storage solution designed for demanding enterprise environments. This cable converts a single fully enclosed SlimSAS 8i host interface into two independent U.2 interfaces, each equipped with dedicated 15-pin power connectors. Featuring IP67-rated protection on the host connector, it provides exceptional defense against environmental contaminants while delivering high-speed data transmission and reliable power delivery. Engineered for industrial and data center applications, this solution ensures optimal performance in harsh operating conditions where both connectivity reliability and environmental protection are critical.

Features

• Fully Enclosed Protection: IP67-rated SlimSAS connector provides complete protection against dust, moisture, and physical damage
• Integrated Power Delivery: Combines PCIe data transmission and power supply in a single ruggedized assembly
• Dual U.2 Connectivity: Efficiently splits one 8i host port into two U.2 interfaces for multiple NVMe SSDs
• High-Speed Performance: Supports PCIe 4.0/5.0 specifications with data rates up to 32 GT/s
• Enhanced EMI Shielding: Multi-layer shielding ensures signal integrity in electrically noisy environments
• Industrial Grade Construction: Designed to withstand harsh conditions including vibrations and temperature extremes
• Reliable Power Supply: 15-pin SATA power connectors ensure stable operation for U.2 devices

Specifications

• Product Model: Fully Enclosed SlimSAS to Dual U.2 with Power Cable
• Host Connector: Fully Enclosed SlimSAS SFF-8654 8i, 74-Position, Male, Straight (IP67 rated)
• Device Connectors: 2x U.2 SFF-8639 Data + 15-pin SATA Power, Male, Straight
• Data Rate Support: Up to 32 GT/s (PCIe 5.0)
• Supported Protocols: PCIe 5.0/4.0, NVMe 2.0
• Power Rating: 12V/5V, up to 9A per connector
• Wire Gauge: 30 AWG (signal), 20-22 AWG (power)
• Shielding: Individual pair shielding with overall braid protection plus enclosed connector shielding
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: -40°C to +85°C
• Impedance: 85? ±10%
• Durability Rating: 10,000 mating cycles
• IP Rating: IP67 (host connector)

Applications

• Industrial NVMe Storage: Connecting host interfaces to U.2 NVMe SSDs in harsh industrial environments
• Outdoor Data Infrastructure: Ideal for telecommunications and outdoor installations requiring environmental protection
• Military and Aerospace: Supporting storage applications demanding high reliability and environmental sealing
• High-Density Data Centers: Deploying in hyperscale environments where equipment protection is critical
• Cloud Server Deployment: Enabling storage expansion in cloud infrastructure with enhanced protection
• High-Performance Computing: Supporting data-intensive applications in demanding operational environments
• OEM Server Solutions: Designed for server manufacturers requiring ruggedized connectivity solutions
