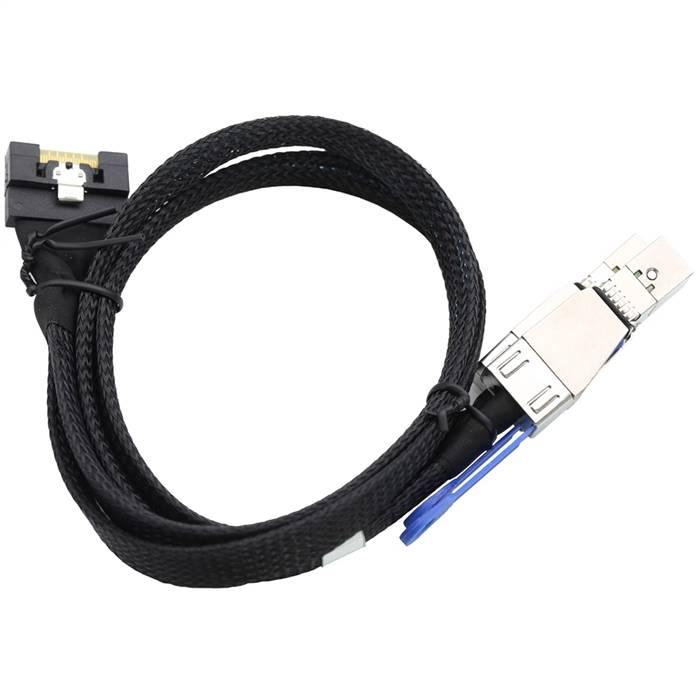

Fully Enclosed SlimSAS SFF-8654 8i to 2 External HD Mini SAS SFF-8644 Cable

The Fully Enclosed SlimSAS SFF-8654 8i to 2 External HD Mini SAS SFF-8644 Cable is a robust breakout solution designed for secure, high-speed data transmission between systems in demanding data center and external storage environments. This cable effectively converts a single internal SlimSAS 8i host port into two independent external Mini SAS 4x interfaces, enabling reliable connectivity for storage expansion across separate enclosures. Its defining feature is the fully enclosed, shielded connector system, which provides superior protection against physical damage, dust, EMI/RFI interference, and accidental disconnection. Engineered for durability and signal integrity, this cable is an ideal choice for connecting servers to external JBODs, storage arrays, and other equipment where a secure, external-grade connection is paramount.

Features

• High-Density Breakout Design: Converts one internal SlimSAS 8i host port to two external Mini SAS 4x interfaces.
• Fully Enclosed Connector System: Features a shielded, latching design on external connectors for maximum physical protection and EMI shielding.
• Secure Latching Mechanism: External SFF-8644 connectors incorporate a robust latch to prevent accidental disconnection and ensure a stable link.
• High-Speed Performance: Supports data rates up to 24 Gbps per lane (SAS 4.0).
• Enhanced Environmental Protection: Sealed connector design offers improved resistance to dust, contaminants, and physical strain.
• Superior Signal Integrity: Precision engineering with optimized impedance matching and full shielding to minimize signal degradation and crosstalk.
• Flexible Protocol Support: Compatible with SAS and SATA protocols.
• Ruggedized Construction: Built with quality materials and overall braid protection for long-term reliability in harsh environments.

Specifications

• Product Model: Fully Enclosed SlimSAS to Dual External Mini SAS Cable
• Host Connector: SlimSAS SFF-8654 8i, Male, Straight (Internal)
• Device Connectors: 2x External HD Mini SAS SFF-8644 4x, Male, Latching
• Data Rate Support: Up to 24 Gbps (SAS 4.0), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 4.0/3.0, SATA 3.0
• Shielding: Individual pair shielding with overall braid protection; enclosed metal connector shells.
• Cable Jacket: Durable, low-smoke, zero-halogen (LSZH) or PVC options available.
• Cable Length: 0.5m, 1.0m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles minimum
• Minimum Bend Radius: 30mm

Applications

• External Storage Connectivity: Linking servers to external JBODs, storage shelves, and expansion arrays.
• Data Center Inter-rack Connections: Creating reliable, high-speed links between equipment in separate racks.
• Storage Area Networks (SAN): Facilitating connections within SAN infrastructure requiring external cables.
• High-Availability Systems: Ideal for mission-critical environments where secure, latched connections are necessary to prevent downtime.
• Industrial and Rugged Environments: Suitable for settings where cables are exposed to physical stress, dust, or potential interference.
• Backup and Archive Systems: Connecting tape libraries or large-scale backup storage devices.
• OEM Storage Solutions: Designed for storage array and server manufacturers integrating external port options.
