Fully Enclosed SlimSAS SFF-8654 8i to Two Right Bend Internal Mini SAS SFF-8087 36P Cable

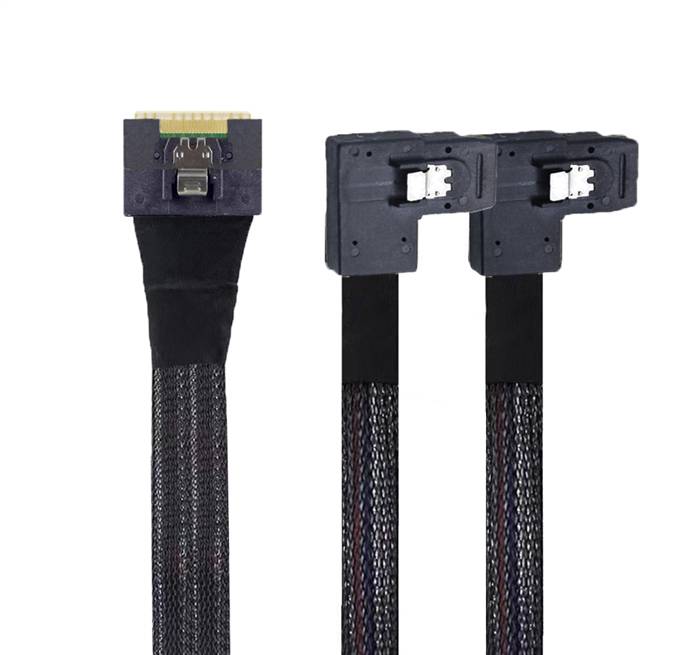

This Fully Enclosed SlimSAS SFF-8654 8i to Two Right Bend Internal Mini SAS SFF-8087 36P Cable can be used to connect internal devices, e.g. a backplane with Slim Line 8654 74 pin connector to a controller with SFF-8087 36 Pin connector.

Features

• Smaller size connectors and cables save equipment space
• Provide 8-channel signal transmission according to industry standards
• Data speed: each channel supports UPI 11.2GT/s, SAS4.0 24Gbps, OpenCAPI 25Gbps and PCIe 4.0 16Gbps
• Comply with SAS4.0 and SlimSAS SFF-8654 specifications

Specifications

• Connector A: 1 x Fully Enclosed Slimline SFF-8654 8i 74P STR (Straight)
• Connector B: 2 x Internal Mini SAS SFF-8087 36P RB (Right Bend)
• Length: 0.5m, 1m
• Voltage: 30VDC per contact SlimSAS 8i plug: maximum 80mohm initial, maximum 20mohm after pressure test.
• Dielectric withstand voltage: minimum 300 VDC, lasting 100 ms
• Insulation resistance: the minimum value between adjacent pins is 10M?
• Impedance of mating connector: 100 +/- 10% ohm
• Common mode impedance: in line with SAS4.0 specifications
• Insertion loss: in line with SAS4.0 specification,
• Maximum crosstalk: in line with SAS4.0 specifications
• Combining force: 55.5N max
• Releasing force: 49N max
• Rated durability period: at least 250 cycles
