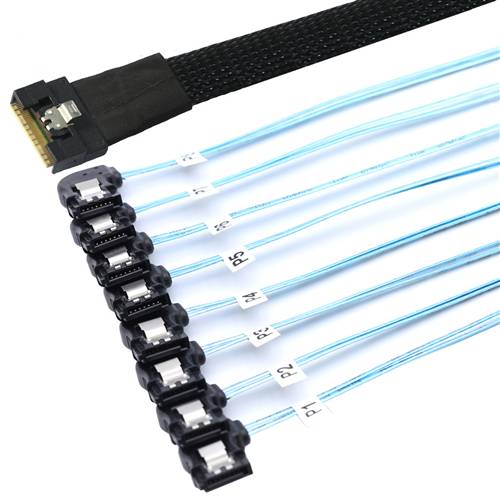

Fully Enclosed SlimSAS SFF-8654 8i to 8 Left Bend SATA 7P Cable

The Fully Enclosed SlimSAS SFF-8654 8i to 8 Left Bend SATA 7P Cable is a high-density breakout solution engineered for space-constrained server and storage environments. This cable converts a single SlimSAS 8i host interface into eight independent SATA 7-pin channels, providing optimal connectivity for SATA drive expansions. Its distinctive feature is the left-angle SATA connectors designed to facilitate superior cable management by allowing closer alignment to drive backplanes and reducing bend radius stress. The fully enclosed connector design offers enhanced physical protection and EMI shielding, ensuring reliable data transmission and durability in demanding storage applications.

Features

• High-Density Breakout Design: Converts one SlimSAS 8i host port into eight individual SATA 7-pin interfaces
• Optimized Left-Angle Connectors: 90-degree left bend SATA connectors enable cleaner routing and improved airflow in tight spaces
• Fully Enclosed Design: Shielded SATA connectors provide superior physical protection and EMI/RFI shielding
• High-Speed Performance: Supports SATA 3.0 specifications with data rates up to 6 Gbps per port
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching minimizes crosstalk
• Secure Connection: Robust connector design ensures stable mating and long-term reliability
• Flexible Protocol Support: Compatible with SAS controllers for SATA drive connectivity

Specifications

• Product Model: SlimSAS to 8x SATA Cable (Left Bend)
• Host Connector: SlimSAS SFF-8654 8i, Male, Straight
• Device Connectors: 8x SATA 7-pin, Male, 90-degree Left Bend, Fully Enclosed
• Data Rate Support: Up to 6 Gbps per port (SATA 3.0)
• Supported Protocols: SATA 3.0
• Cable Type: Twinaxial
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles minimum
• Minimum Bend Radius: 30mm

Applications

• High-Density Storage Servers: Ideal for 1U/2U servers where space optimization is critical
• Cloud Storage Infrastructure: Connecting host controllers to multiple SATA drives in large-scale deployments
• Enterprise Storage Arrays: Supporting cost-effective storage expansion with SATA drives
• Data Center Storage Nodes: Enabling high-capacity storage configurations with optimized cable management
• Backup and Archive Systems: Reliable connectivity for high-capacity SATA drive arrays
• Video Surveillance Storage: Supporting high-volume data writing to multiple drives
• OEM Storage Solutions: Designed for system integrators requiring space-optimized storage connectivity
