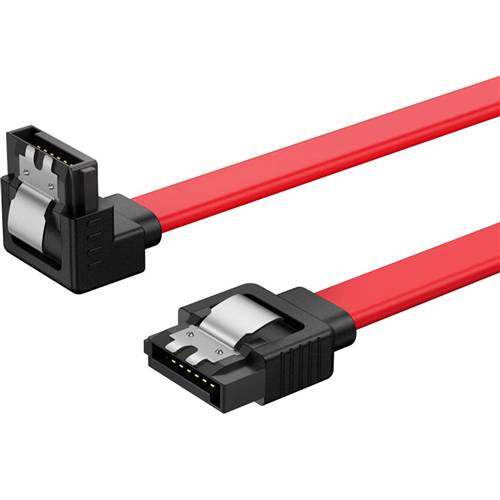

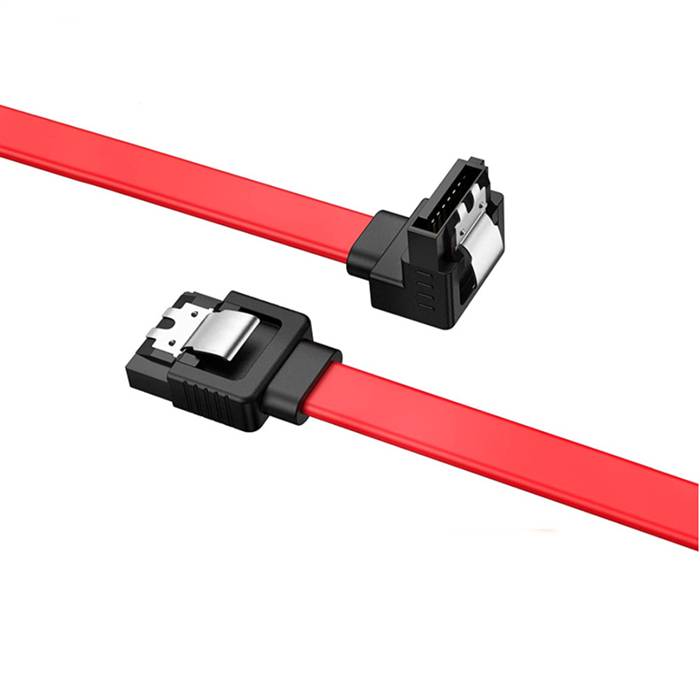

SATA 7Pin to SATA 7Pin Red Cable, Straight to Right Angle

The SATA 7Pin to SATA 7Pin Red Cable, Straight to Right Angle is a high-performance internal connectivity solution designed for modern computing and storage systems where space optimization, visual identification, and reliable data transmission are essential. This cable features a straight connector on one end and a right-angle connector on the opposite end, with a distinctive red color that enhances visibility and organization in complex setups. The right-angle design enables efficient cable routing in tight spaces, reducing strain and improving airflow, while the straight connector ensures easy mating on the host side. Engineered with precision-molded connectors and high-quality conductors, this cable supports the full SATA 3.0 specification while maintaining backward compatibility with earlier SATA standards. The red color provides quick identification in dense configurations, making it ideal for space-constrained environments where both performance and cable management are critical.

Features

• Hybrid Connector Design: Straight connector on one end and right-angle connector on the opposite end for versatile installation
• Distinctive Red Color: Enhances visual identification and organization in complex setups
• High-Speed Data Transfer: Supports data rates up to 6 Gbps (SATA 3.0)
• Space Optimization: Right-angle connector reduces cable strain and saves space in compact systems
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching
• Secure Connection: Gold-plated contacts and secure latching mechanism ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices
• Durable Construction: Molded strain relief and high-quality materials ensure long-term reliability

Specifications

• Product Model: SATA 7Pin Straight to Right Angle Red Cable
• Connector A: SATA 7-pin, Male, Straight
• Connector B: SATA 7-pin, Male, Right Angle
• Color: Red (throughout cable and connectors)
• Data Rate Support: Up to 6 Gbps (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Flat Cable
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Aluminum foil shielding for EMI protection
• Cable Length: 0.2m, 0.3m, 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm

Applications

• Compact Desktop Systems: Ideal for small form factor PCs and HTPCs where space is limited and cable visibility is important
• Server and Storage Enclosures: Enables efficient cable routing in high-density racks with quick visual identification
• Gaming Rigs: High-performance gaming systems with windowed cases where aesthetics and space optimization matter
• NAS Devices: Network-attached storage systems requiring optimized cable management and easy maintenance identification
• Workstations: Professional workstations with multiple drives where space constraints and cable organization are crucial
• Data Centers: Large-scale deployments where color-coded cables simplify maintenance and troubleshooting in dense racks
• OEM Applications: Designed for system integrators needing space-optimized SATA connectivity with visual organization
• Test Benches: Laboratory environments where quick cable identification and space-saving features improve efficiency

Note: The red color provides both aesthetic appeal and functional benefits by making the cable easily identifiable in complex systems. The right-angle connector addresses spatial constraints while maintaining full SATA 3.0 performance. This combination is particularly useful in environments where both space optimization and quick cable identification are required for efficient maintenance and organization.
