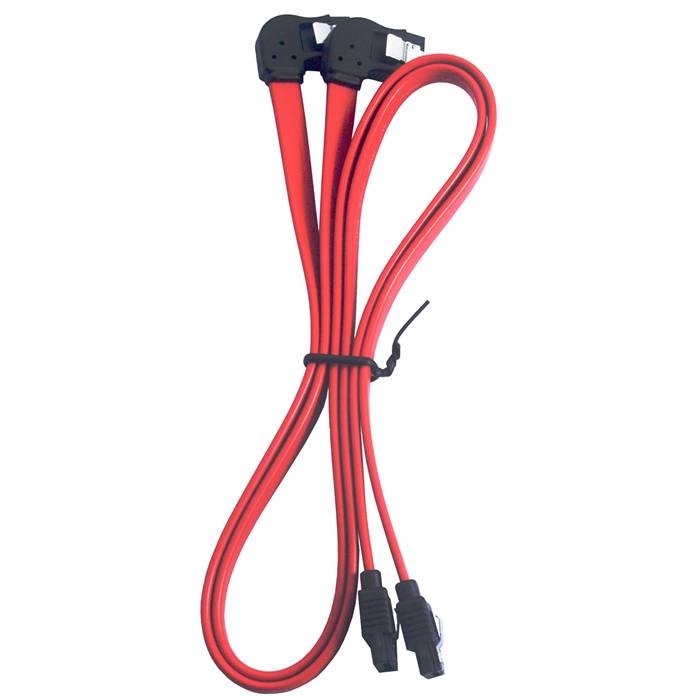

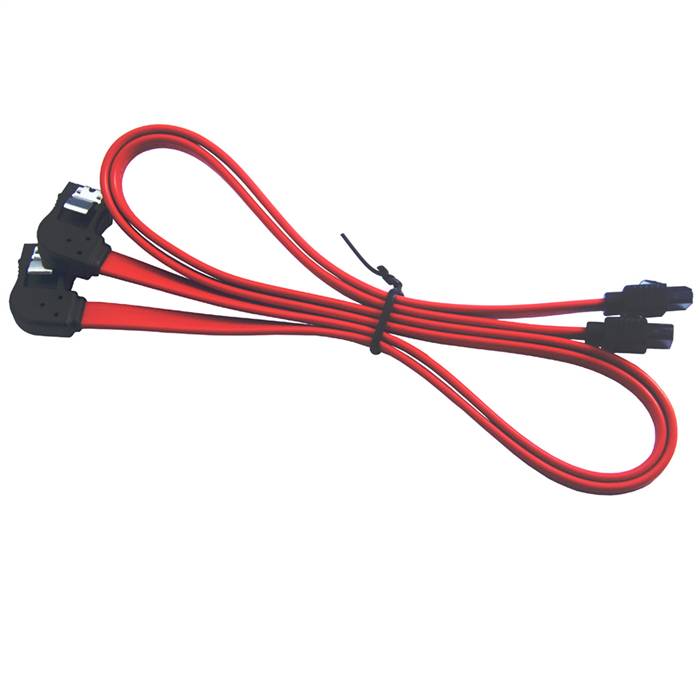

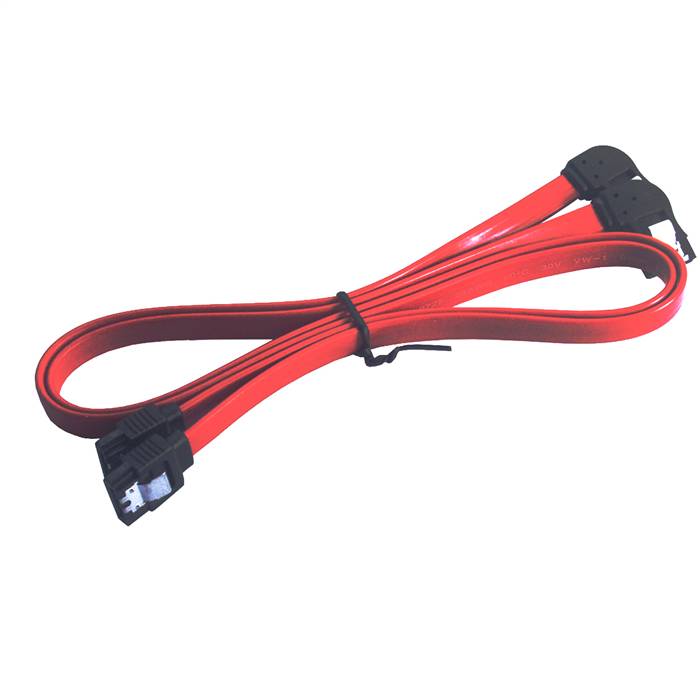

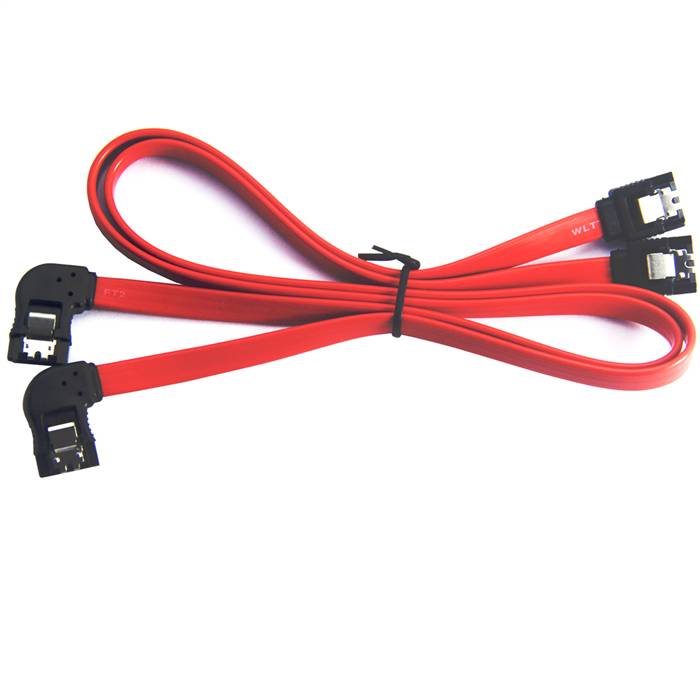

SATA 7Pin to SATA 7Pin Red Cable, Straight to Right Bend

The SATA 7Pin to SATA 7Pin Red Cable, Straight to Right Bend is a specialized internal connectivity solution designed for modern computing environments with specific right-side spatial constraints and cable management requirements. This cable features a straight connector on one end and a right-bend connector on the opposite end, finished in a distinctive red color for enhanced visibility and system organization. The right-bend design enables optimal cable routing in configurations where connectors must avoid obstructions on the right side, while the straight connector ensures easy connection to host devices. Engineered with precision-molded connectors and high-quality conductors, this cable supports full SATA 3.0 specifications while maintaining backward compatibility with earlier SATA standards. The vibrant red coloration provides immediate visual identification in complex setups, making this solution ideal for space-constrained servers, custom storage arrays, and specialized computing environments where both performance and cable management efficiency are paramount.

Features

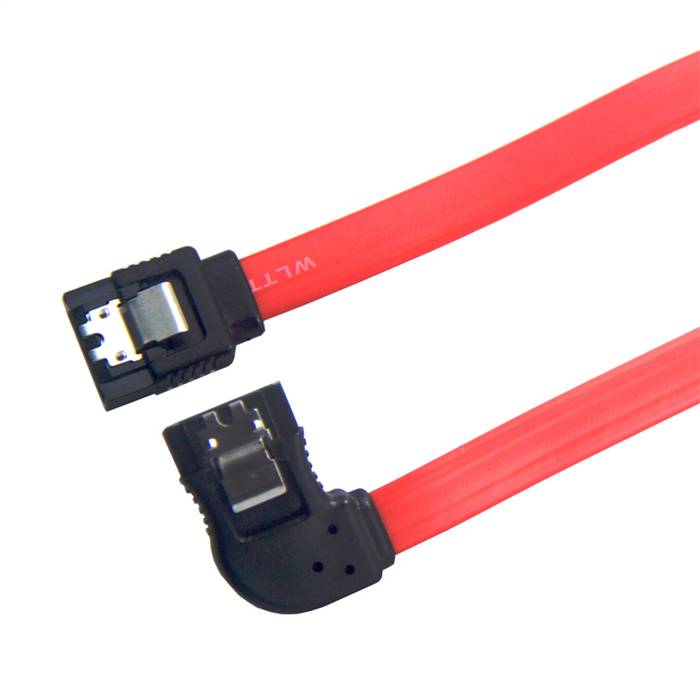

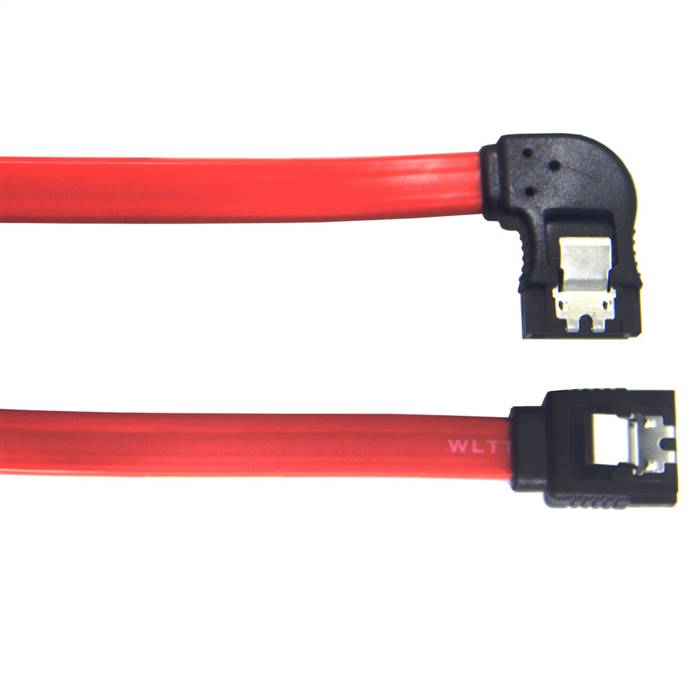

• Asymmetric Connector Design: Straight connector on host end and right-bend connector on device end
• Distinctive Red Coloration: Provides enhanced visual identification in complex system configurations
• High-Speed Data Transfer: Supports data rates up to 6 Gbps (SATA 3.0 specifications)
• Right-Side Clearance Optimization: Right-bend connector addresses specific spatial constraints in right-side layouts
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching (100? ±10%)
• Secure Connection: Gold-plated contacts and positive latching mechanism ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices
• Durable Construction: Molded strain relief and high-quality materials ensure long-term reliability

Specifications

• Product Model: SATA 7Pin Straight to Right Bend Red Cable
• Connector A: SATA 7-pin, Male, Straight
• Connector B: SATA 7-pin, Male, Right Bend (45-degree orientation)
• Color: Solid red throughout cable and connectors
• Data Rate Support: Up to 6 Gbps (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Flat Cable
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Aluminum foil shielding for EMI protection
• Cable Length: 0.2m, 0.3m, 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm

Applications

• Right-Side Constrained Servers: Ideal for server configurations with right-side clearance limitations
• Modern Storage Arrays: Perfect for storage systems requiring right-oriented cable routing solutions
• High-Density Data Centers: Space-optimized configurations in enterprise environments with enhanced visibility
• Custom PC Builds: Gaming systems and workstations with specific right-side cable management needs
• OEM Integration: Designed for system integrators dealing with right-side form factor requirements
• Test and Development: Laboratory environments requiring right-side optimized cable solutions
• Industrial Computing: Suitable for industrial PCs with right-side spatial constraints
• Upgrade Projects: Enables compatibility with systems having right-side clearance limitations

Note: This cable addresses specific right-side spatial challenges in configurations where traditional straight or left-bend connectors cannot provide adequate clearance. The right-bend design ensures optimal cable routing while maintaining full SATA 3.0 performance specifications. The solid red color provides both functional benefits for quick identification and aesthetic appeal in visible system builds. This solution is particularly valuable in environments where right-side space optimization and maintenance efficiency are critical requirements.
