25 Gigabit Quad Port SFP28 IntelŪ E810-XXVDA4 Low Latency Ethernet Network Interface Card

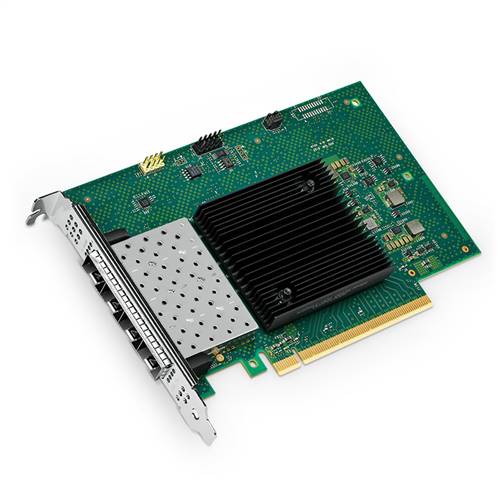

25 Gigabit Quad Port SFP28 Intel® E810-XXVDA4 Low Latency Ethernet Network Interface Card



Our Price: $599.00
Warranty: 1 Year Warranty


Product Code: E810XXVDA4
Qty:

Description


25 Gigabit Quad Port SFP28 IntelŪ E810-XXVDA4 Low Latency Ethernet Network Interface Card

IntelŪ E810-XXVDA4 network adapters improve application efficiency and network performance with innovative and versatile capabilities. By supporting the PCIe 4.0x 16 host interface, the E810-XXVDA4 adapter provides sufficient bandwidth for line rate traffic on Quad 25Gb ports. It is designed to optimize high-performance system workloads for Cloud and Communications.

Product Highlights

  • PCIe 4.0 x 16 Host Interface and 25GbE Quad-Port Transmission
  • Supports RDMA iWARP and RoCEv2 for high throughput and low-latency connectivity
  • Application Device Queues (ADQ) improves application response time predictability
  • Dynamic Device Personalization (DDP) enhances packet classification capabilities
  • IEEE 1588 PTP support enables precise clock synchronization across 5G RAN deploy
  • Enhanced Data Plane Development Kit (DPDK) increases packet-processing speeds


Specifications

Ports
Quad
Controller
IntelŪ Ethernet Controller E810-CAM1
Supported Ethernet Speeds
25/10GbE
Host Interface
PCIe 4.0x 16
Cabling Type
SFP28 Transceiver, DAC and AOC
Link Rate
16 GT/s
Connectivity (VT-c)
Yes
OS Support
Windows, Linux, VMware, FreeBSD
Bracket Height
Full Height
Max. Power Consumption
22.9W
Storage Humidity
90% max. non-condensing relative humidity at 35šC
Storage Temperature
-40 °C to 70 °C (-40 °F to 158 °F)
Technology
Ethernet
Operating Temperature
0 °C to 60 °C (32 °F to 140 °F)
Card PCB Dimensions (WxD)
6.58x 4.37" (167x 111mm)
RoHS R6 Compliant
Yes
