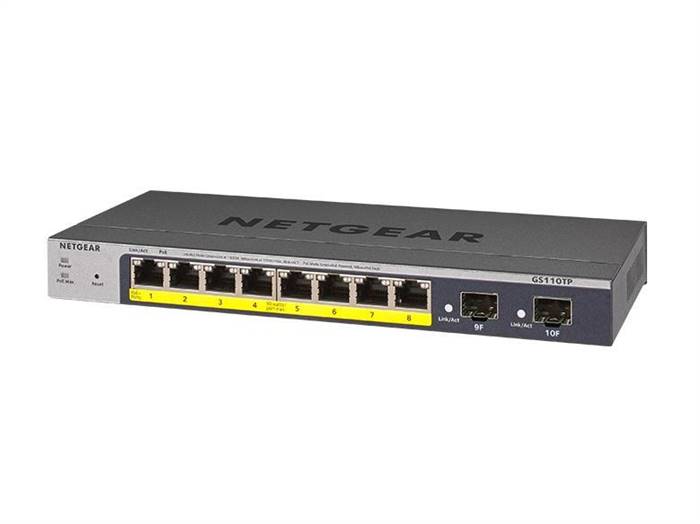

The Netgear GS110TP-300NAS is an 8-port Gigabit PoE+ smart managed switch with two dedicated SFP uplink ports. Key specifications include a 20Gbps switching capacity, a 55W total PoE budget, and a store-and-forward architecture. The switch is designed for desktop or wall mounting and comes with a lifetime warranty.

General specifications

• Ports: 8 x 10/100/1000Mbps autosensing Gigabit Ethernet (PoE+), 2 x Gigabit SFP uplink ports.
• Switching capacity: 20Gbps full duplex.
• Forwarding mode: Store-and-forward.
• Address database size: 4k MAC addresses.
• Buffer memory: 512KB embedded.

Power over Ethernet (PoE)

• PoE standard: PoE+.
• Total PoE budget: 55W.
• Power supply: External.

Physical and environmental

• Form factor: Desktop, wall-mountable.
• Dimensions: 9.3" × 4" × 1.07" (236 × 101.6 × 27𝑚𝑚).
• Weight: 1.55lbs (0.7kg).
• Acoustic noise: 0 dB.
• Operating temperature: 32∘ to 104∘F (0∘ to 40∘C).
• Mean Time Between Failures (MTBF): 157,004 hours (~18 years).

Management and features

• Management type: Smart Managed, with cloud management capabilities.
• Management layer: Supports Layer 2/2+/Layer 3 Lite.
• Security: Robust security features include 802.1x authentication, port-based security, and ACL filtering.
• QoS: Features port-based, 802.1p, and DSCP prioritization.

What's in the box

• GS110TP Ethernet Switch.
• AC Adapter.
• Rubber Footpads.
• Wall-Mount Kit.
• Resource CD.
• Installation Guide.

Compatible Transceivers

The NETGEAR GS110TP-300NAS switch has two gigabit SFP ports that support a variety of standard SFP transceivers.
