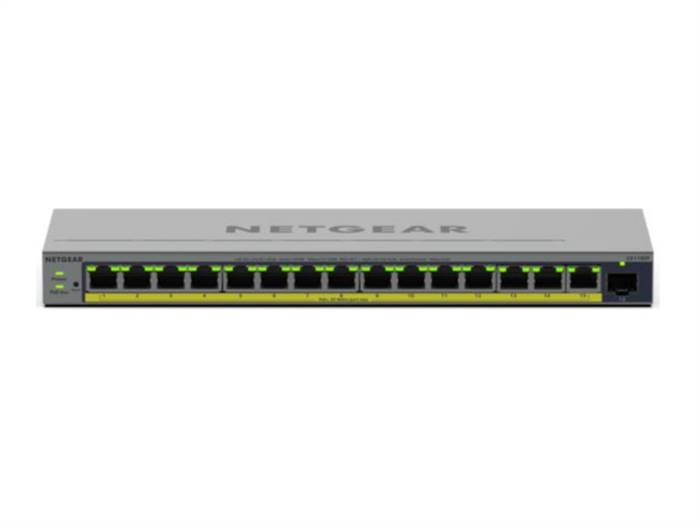

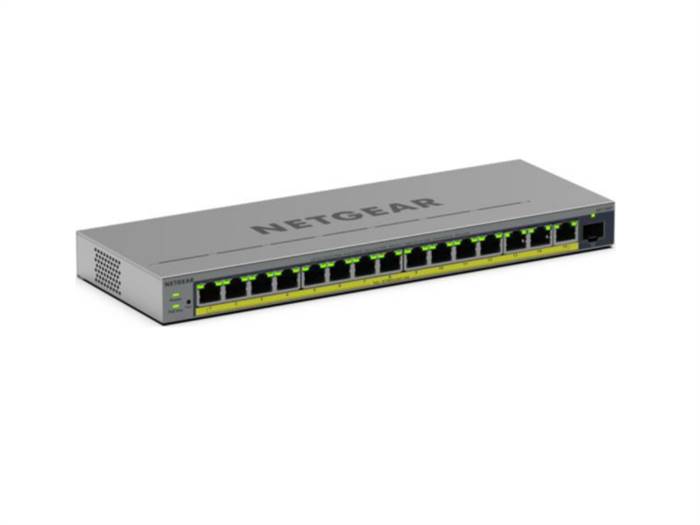

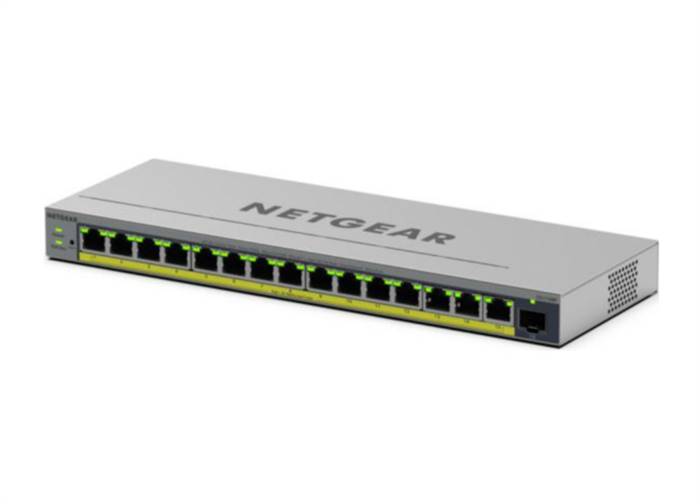

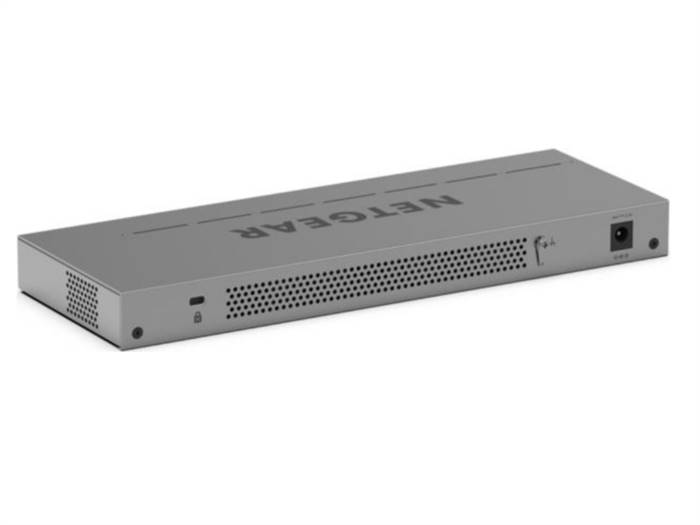

The Netgear GS116EP-100NAS is a 16-port, Gigabit Ethernet, Easy Smart managed switch with 15 PoE+ ports and one dedicated SFP uplink port. It has a total PoE budget of 180W, features fanless and silent operation, and supports fundamental management functions like VLAN, QoS, and loop protection. The switch is designed for desktop or wall-mount installation and has a sturdy metal enclosure.

Key specifications

• Ports: 15 x Gigabit Ethernet (PoE+) and 1 x SFP port
• PoE budget: 180W total
• Management: Easy Smart managed (includes VLAN, QoS, and more)
• Switching capacity: 32 Gbps
• Form factor: Desktop or wall-mountable
• Noise: Fanless and silent (0 dBA)
• Dimensions: 11.3" x 3.9" x 1.1"
• Weight: ~1.83 lbs
• Power: Provides up to 30W per port with Uninterruptible PoE
• Features:
• Plug-and-play connectivity with advanced management features
• VLAN Segmentation and Loop Protection
• Quality of Service (QoS) for traffic prioritization
• Broadcast Storm Control and Auto-DoS Prevention
• Port Mirroring and Rate Limiting
• Supports Jumbo Frames up to 9,000 Bytes

Compatible Transceivers

The Netgear GS116EP-100NAS switch has one dedicated Gigabit Ethernet SFP port (1 Gbps) that is compatible with specific Netgear SFP transceiver modules.
