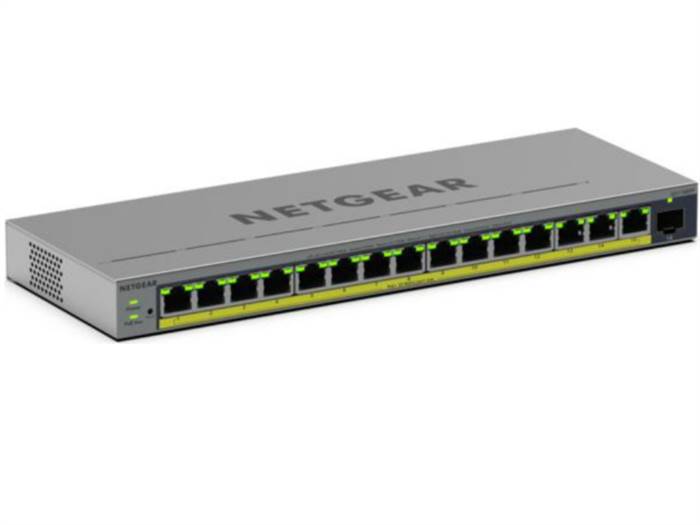

The Netgear GS116EPP-100NAS is a 16-port PoE+ Easy Smart Managed Switch, with a 231W total power budget, designed for business environments requiring power for devices like IP cameras and wireless access points.

General Specifications

• Product Type: Easy Smart Managed Ethernet Switch
• Model: GS116EPP
• Management Type: Easy Smart Managed (web browser-based GUI)
• Layer Supported: 3 (Layer 3 features like VLANs and QoS are supported)
• Housing: Durable metal
• Cooling: Fanless (silent operation, suitable for noise-sensitive environments)
• Mounting Options: Desktop, wall-mountable, or rackmount (kits included)

Performance & Connectivity

• Total Network Ports: 16
• 15 x Gigabit Ethernet (RJ45) ports with PoE+
• 1 x Dedicated SFP fiber port for uplink/long distance connections
• PoE+ (802.3at): Yes, up to 30W per port
• Total PoE Power Budget: 231 W
• Switching Capacity: 32 Gbps (non-blocking architecture)
• Jumbo Frame Support: Up to 10 KB (10,000 bytes)
• MAC Address Table Size: 8K entries
• Buffer Size: 4.1 MB

Key Features

• VLAN Support: For network segmentation (port-based and 802.1Q)
• QoS (Quality of Service): For traffic prioritization
• Energy Efficient Ethernet (EEE): IEEE 802.3az compliant for power savings
• Security Features: Includes Auto Denial-of-Service (DoS) prevention, loop prevention, and broadcast storm controls
• FlexPoE: Allows for reducing the power budget with a separately purchased power supply module if a smaller budget is needed (e.g., to 183W, 155W, or 76W)

Power & Environmental

• Max Power Consumption: 250.6 W (with max PoE usage)
• Power Source: External power adapter, AC 100-240 V
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Dimensions (W x D x H): 286 x 101 x 27 mm (11.3 x 4.0 x 1.1 in)
• Weight: 0.83 kg (1.83 lb)

Compatible Transceivers

The NETGEAR GS116EPP-100NAS is a 16-port Gigabit Ethernet Easy Smart Managed Plus switch with one dedicated SFP port. This SFP port is designed to accept a standard 1 Gbps SFP transceiver for fiber optic connections.
