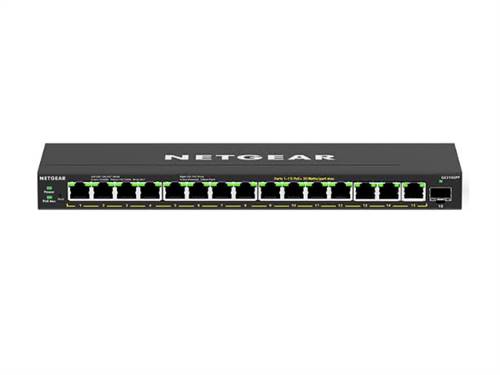

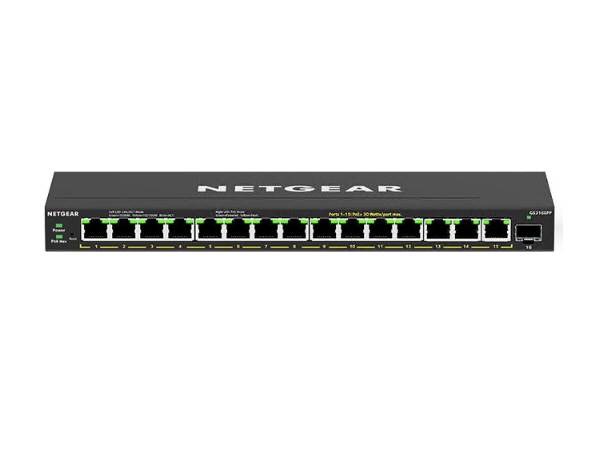

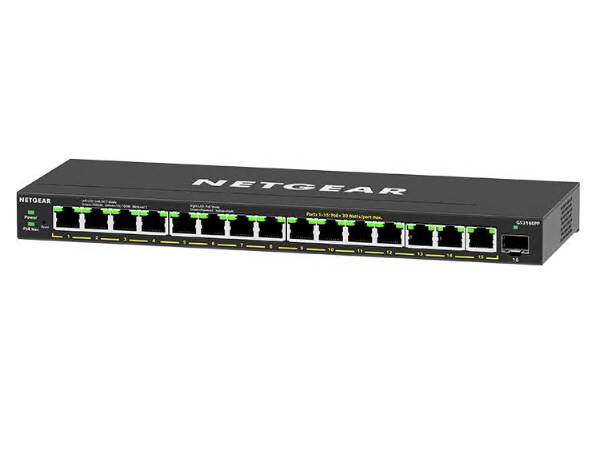

The GS316EPP-100NAS is a 16-port high-power PoE+ Gigabit Ethernet switch with 15 PoE+ ports and one SFP uplink port, a total PoE budget of 231W, and a 32 Gb/s switching bandwidth. It is a "Plus" or Easy Smart managed switch with features like VLANs, QoS, and advanced PoE controls for business networks. It supports up to 1000 Mbps data transfer rates and is designed for desktop or wall-mount installation.

General specifications

• Ports: 16 Gigabit Ethernet (10/100/1000 Mbps) ports
• PoE Ports: 15 ports with PoE+ (802.3at) support
• Uplink Port: 1 x 1 Gb SFP port
• PoE Power Budget: 231W
• Switching Bandwidth: 32 Gb/s
• MAC Address Table Size: 4K
• Packet Buffer: 192 Kb

Management and features

• Management: Easy Smart Managed Essentials with a business-friendly GUI
• Supported Protocols: Includes VLAN, QoS, IGMP Snooping, and Link Aggregation
• PoE Controls: Advanced features include PoE prioritization, power limit per port, and scheduling
• Security: DHCP Snooping and DoS Attack Prevention
• Jumbo Frames: Supports up to 10,000 Bytes

Physical and electrical

• Dimensions: 11.3 x 4 x 1.1 inches (286 x 102 x 27 mm)
• Weight: 1.95 lbs (0.88 kg)
• Cooling System: Passive
• Power Supply: Internal
• Mounting: Desktop or wall mountable

Compatible Transceivers

The NETGEAR GS316EPP-100NAS is a Gigabit Ethernet switch, and its SFP port only supports Gigabit (1G) SFP transceiver modules.
