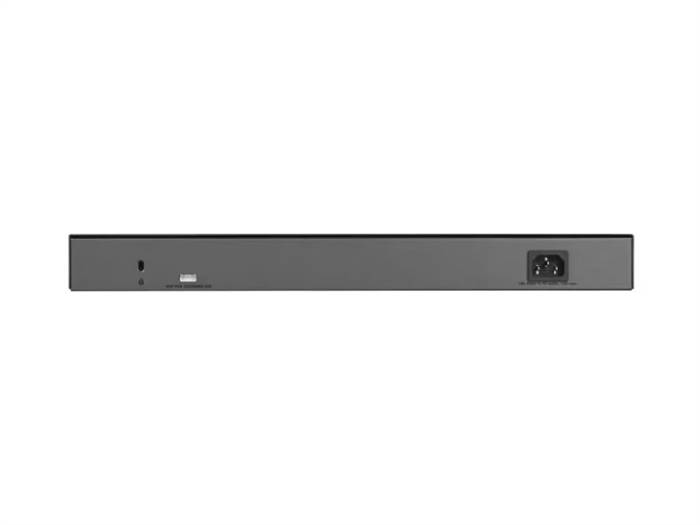

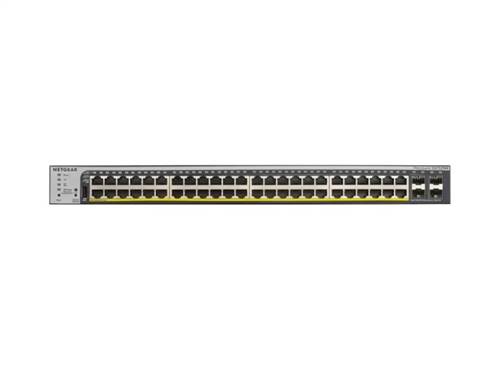

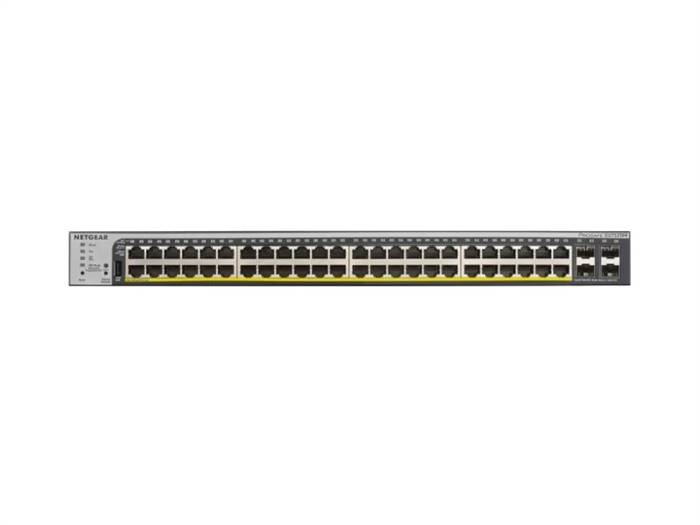

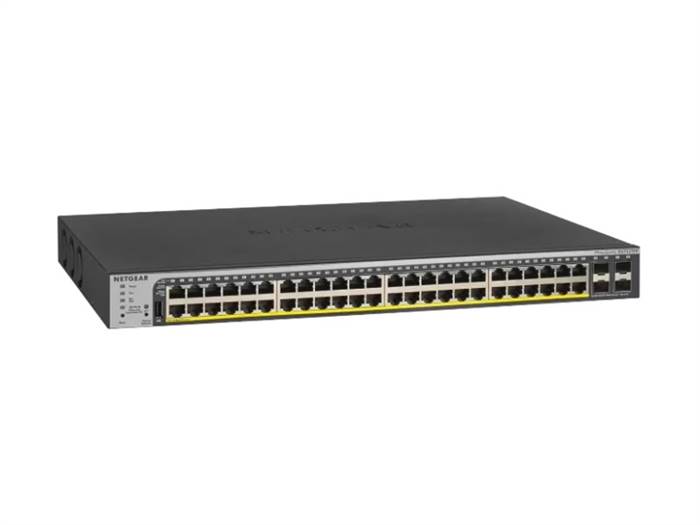

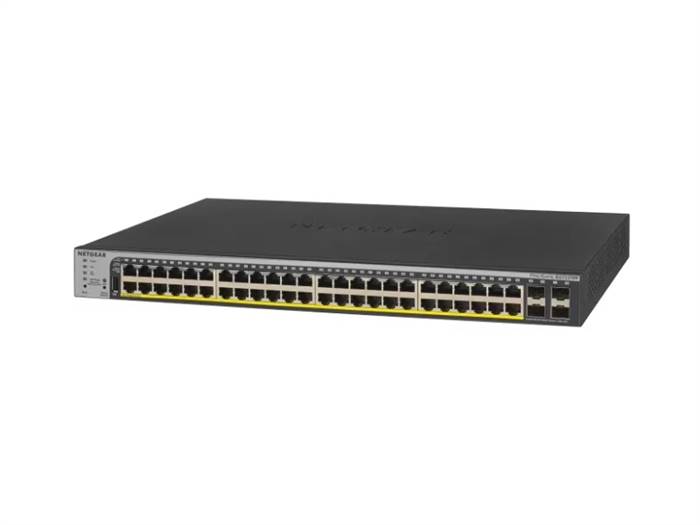

The Netgear GS752TPP-300NAS is a 52-port,
10/100/1000 Mbps Layer 3 Lite Smart Managed Pro PoE+ switch, offering 48
PoE+ enabled Gigabit Ethernet ports with a 760W total PoE
power budget, 4 SFP uplink ports, and Insight Cloud
Management for remote configuration and monitoring. Key features
include a 104 Gbps non-blocking switching bandwidth, L2/L3
Lite capabilities, and support for Advanced VLANs, QoS,
and security protocols.
Key Specifications:
- Ports: 48
x Gigabit Ethernet (RJ45) PoE+ ports, 4 x Gigabit Ethernet (SFP) ports
- PoE
Power: 760W total PoE power budget
- PoE
Standard: IEEE 802.3at (PoE+)
- Switching
Bandwidth: 104 Gbps (Non-Blocking)
- Management: Web
GUI, CLI, SNMP, RADIUS/TACACS+, Insight Cloud Management
- Management
Layer: Layer 2, Layer 3 Lite
- Security: DHCP
Snooping, DoS Attack Prevention, Storm Control, RADIUS Authentication
- Advanced
Features: VLANs (up to 256), VLAN Routing, Static Routes, Link
Aggregation, IGMP Snooping
- Form
Factor: Rack-mountable
- Power: Internal
power supply (100-240VAC)
- Memory/CPU: 512MB
RAM, 64MB Flash Memory
- Dimensions: 440
x 310 x 43.2 mm
- Weight: 5.03
kg (11.08 lbs)
Key Features:
- High
Power PoE+: Delivers up to 30W per port for PoE+ devices like
VoIP phones, IP cameras, and wireless access points.
- Insight
Cloud Management: Provides a 1-year free subscription for remote
management and monitoring.
- Layer
3 Lite Functionality: Includes basic routing features, allowing
for more complex network segmentation and traffic management.
- Energy-Efficient
Ethernet (EEE): Reduces power consumption.
- Comprehensive
Security: Protects the network from various threats with features
like DoS prevention.
Compatible Transceivers
The Netgear GS752TPP-300NAS switch has 4 dedicated
Gigabit SFP ports, and is compatible with 1000BASE-SX and 1000BASE-LX SFP transceivers.
|
|
|
