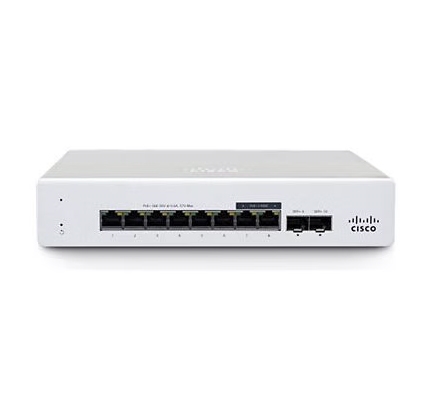

Cisco Meraki MS130-8X - switch - 8 ports - managed
Cisco Meraki MS130-8X - switch

Our Price: $1,095.00
Availability: CALL


Product Code: MS130-8X-HW
Qty:

Description

The Cisco Meraki MS130-8X-HW is an 8-port, cloud-managed Layer 2 access switch featuring 6 x 1GbE and 2 x 2.5GbE Ethernet ports, plus 2 x 10GbE SFP+ uplink ports. It provides a 120W PoE+ budget with a 62 Gbps switching capacity. The switch is fanless, designed for desktop or wall-mount installations, and uses an external 54V DC power adapter.

Cisco Meraki MS130-8X — Specifications (Card)

Cisco Meraki MS130-8X — Specifications

Primary Information

Product Description
Cisco Meraki MS130-8X - switch - 8 ports - managed
Device Type
Switch - 8 ports - managed
Subtype
Gigabit Ethernet
Ports
6 x 10/100/1000Base-T + 2 x 2.5GBase-T + 2 x 10Gb Ethernet SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
120 W
Performance
Switching capacity: 62 Gbps
Remote Management Protocol
SNMP, Syslog, IPv4, IPv6, DHCP
Features
Remote firmware upgrade, DHCP snooping, DHCP relay, 802.1x authentication, ZTP, QoS, non-blocking architecture, cloud managed, fanless
Compliant Standards
IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Power
DC 54 V 2.78 A
Dimensions (W×D×H)
8.7 in × 5.9 in × 1.1 in
Weight
1.94 lbs
Manufacturer Warranty
Limited lifetime warranty

General

Device Type
Switch - 8 ports - managed
Enclosure Type
Desktop, wall-mountable
Subtype
Gigabit Ethernet
Ports
6 x 10/100/1000Base-T + 2 x 2.5GBase-T + 2 x 10Gb Ethernet SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
120 W
Performance
Switching capacity: 62 Gbps
Status Indicators
Power, link/activity, status

Expansion / Connectivity

Interfaces
6 x 1000Base-T RJ-45 PoE+ ¦ 2 x 2.5GBase-T RJ-45 PoE+ ¦ 2 x 10GBase-X SFP+ uplink

Power

Power Device
External power adapter
Voltage Required
DC 54 V
Electric Current Required
2.78 A
Power Consumption (Standby)
16 Watt

Dimensions & Weight

Width
8.7 in
Depth
5.9 in
Height
1.1 in
Weight
1.94 lbs

Manufacturer Warranty

Service & Support
Limited warranty - advance hardware replacement - lifetime - response time: next business day ¦ Technical support - 1 year

Environmental Parameters

Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
5 - 95%
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F
