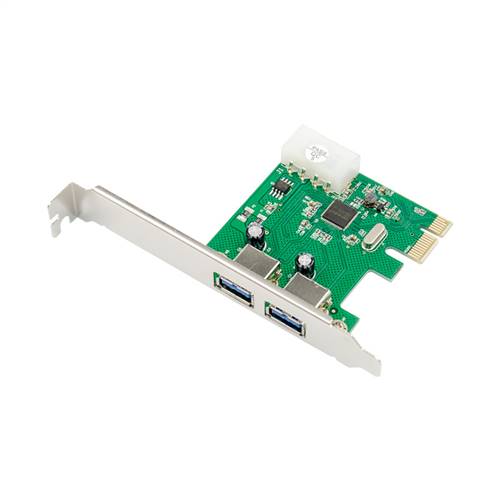

PX1-U30-2A-1042 is a PCIe x1 2-port USB 3.0 Type-A USB Host Card with Asmedia ASM1042 Chipset. The ASM1042 USB 3.0 Host controller which enables a PCI Express equipped platform to interface with USB Super-Speed(5Gbps), High Speed(480Mbps), Full-Speed(12Mbps), and Low-Speed (1.5Mbps) devices, Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used.

Features

• Compliant with PCI Express Specification Revision 2.0
• Compliant with Universal Serial Bus USB 3.0 Specification Revision 1.0
• Backward compatible with USB 2.0 and PCI Express 1.0
• Data transfer rate:
  • USB2.0 mode - up to 480Mbps
  • USB3.0 mode - up to 5 Gbps
• Power output per USB3.0 interface: 5V/900mA (with PSU connected)
• Fully plug & play and hot plug compatible

Specifications

• Chipset: Asmedia ASM1042
• Bus type: PCI Express Rev2.0 x1
• Connectors
  • 2 x External USB 3.0 Type-A ports
  • 1 x Internal 4-pin power plug
• Data rate: Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
• Function
  • Max. 5V/900mA power output to each USB 3.0 Port
  • Hot-swapping feature allows you to connect / disconnect devices without powering down the system
• System: Windows® 2000 / XP / 2003 / Vista / Windows 7/Windows8.x/Windows 10 32/64bit, Linux
• Application: Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices

Package Contents

• 1 x PCIE ASM1042 2 Ports USB 3.0 Card
• 1 x CD-Driver
• 1 x Manual
• 1 x Low-profile Bracket
