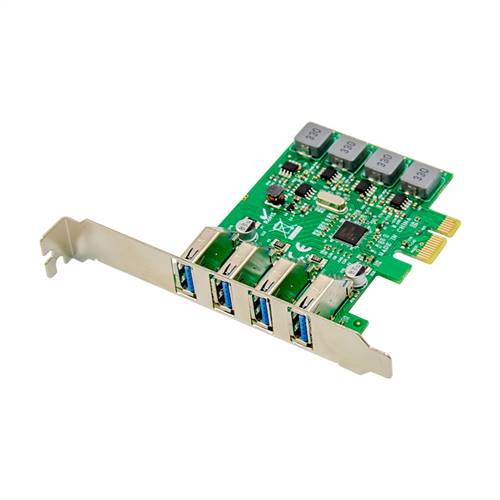

The PX1-U30-4A-SP PCIe x1 4-port USB 3.0 Type-A Bus Powered USB Host Card adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.

Features

• Adds four SuperSpeed USB 3.0 ports, each with up to 5Gb/s (600MB/s) data rate, up to 10x faster than USB 2.0.
• Fully powered by the PCIe bus... does not require molex or sata power cable.
• Power USB devices or charge them without needing an AC adapter... each port provides 900mA of power.
• USB 2.0/1.1 backward compatible allows the 4 Port USB 3.0 x1 PCIe Internal Card to work with legacy USB devices.
• Hot swap capable means you can add and detach devices without rebooting.
• Compatible with UASP (USB Attached SCSI Protocol) enclosures for faster data rates and a reduction in required processor resources.
• Standard full height bracket mounts to desktop or server chassis (LP bracket incl.).
• Uses NEC uPD720202 chipset for PC and Server OS compatibility.
• Compliant with Intel’s Extensible Host Controller Interface (xHCI) Specification Revision 0.96.
• Compliant with PCI Express Base Specification 2.0.
• Compliant with Universal Serial Bus 3.0 Specification Revision 1.0.
• Supports all USB compliant data transfer types.
• Supports all USB compliant peripherals.
• Full support of real time dynamic insertion and removal of USB devices.

Specifications

• Chipset: NEC uPD720201
• Bus Type: PCI Express x1
• Version: PCI Express 2.0
• Connector: 4 x 9-pin USB 3.0 Type A, Female
• Compliant with USB 3.0 Specification
• USB data transfer rate: Up to 5Gbps
• System Requirements
  • PC or Server computer with one available x1, x4, x8 or x16 PCI Express 2.0/1.0 slot.
  • PCI Express 2.0 interface is required to obtain maximum USB 3.0 bandwidth.
  • Microsoft Windows 7, Windows 8, Windows 8.1, Windows 10 and Windows Server OS.
  • Optical drive for Windows driver installation.
• Environmental conditions
  • Operating temperature: 32 to 140 degrees F
  • Storage temperature: 14 to 158 degrees F
  • Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 2 years limited
• Country of origin: China

Package Contents

• 4 Port USB 3.0 x1 PCIe Internal Card
• Driver CD
• User Manual
• Low Profile Bracket
