QSFP28-100G-ER4-40KM | 100G QSFP28 Optical Transceiver
QSFP28-100G-ER4-40KM | 100G QSFP28 Optical Transceiver

Our Price: $1,495.00

Warranty: 1 Year Warranty


Product Code: QSFP28-100G-ER4-40KM

Equipment where Transceiver will be Installed

Select Brand:

Compatibility:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Datasheet

100GBase-ER4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 40km, LC, DOM).

Specifications:
Form Factor QSFP28 Max. Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 1310nm Max. Cable Distance 40km
Connector Duplex LC/UPC Media SMF
Transmitter Type EML Receiver Type APD
TX Power -2.5~6.5dBm Minimum Receiver Power -20.5dBm
Power Budget 18dB Receiver Overload -3.5dBm
Max. Power Consumption 4.5W Extinction Ratio >4dB
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
Modulation (Electrical) 4x 25G-NRZ Modulation (Optical) 4x 25G-NRZ
CDR (Clock and Data Recovery) TX & RX Built-in CDR Packaging Technology BOX Packaging
Bit Error Ratio (BER) 1E-12 MTBF 16,084,928 Hours (@40°C, 60% CL)
Protocols QSFP28 MSA, SFF-8636, IEEE 802.3bm, CAUI-4

Please Note: When transmit distance is less than 40km, please use appropriate attenuator according to the transmit distance to assure the transceivers work.

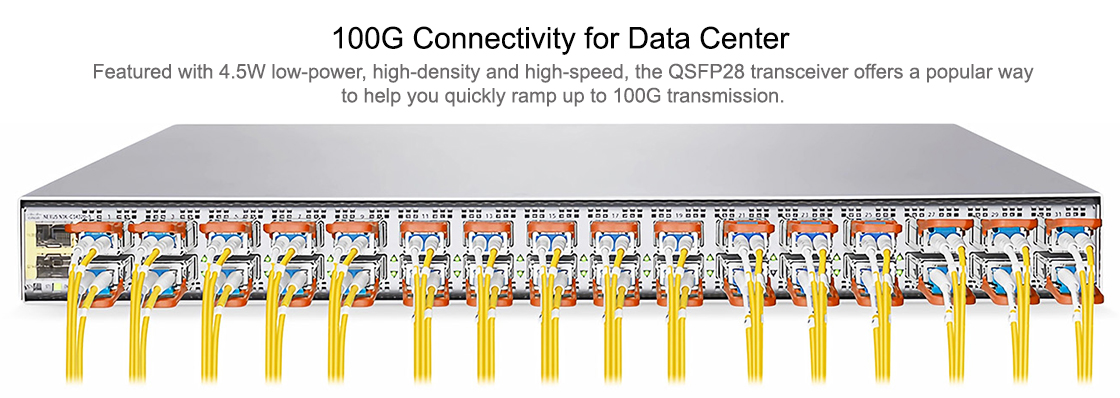

100G Connectivity for Data Center

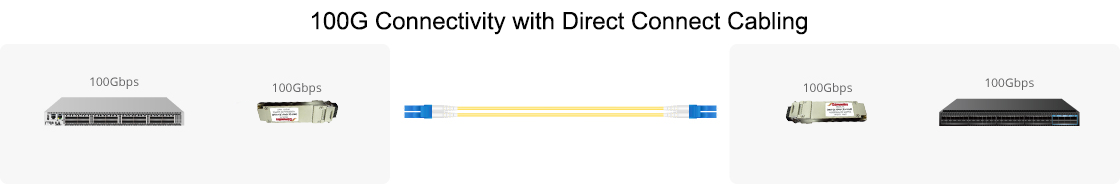

100G Connectivity with Direct Connect Cabling

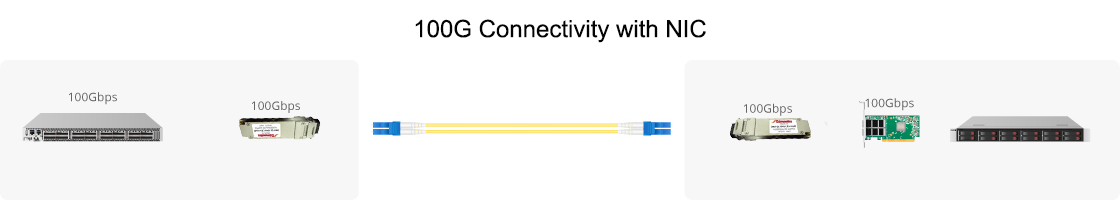

100G Connectivity with NIC

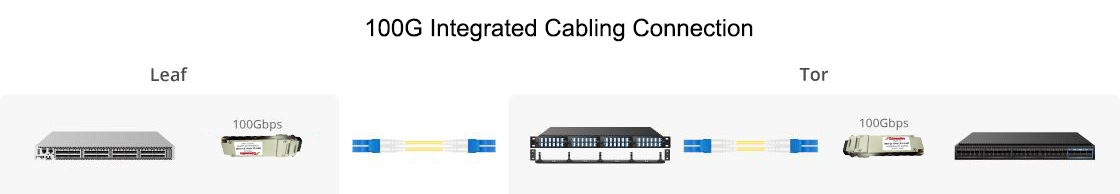

100G Integrated Cabling Connection

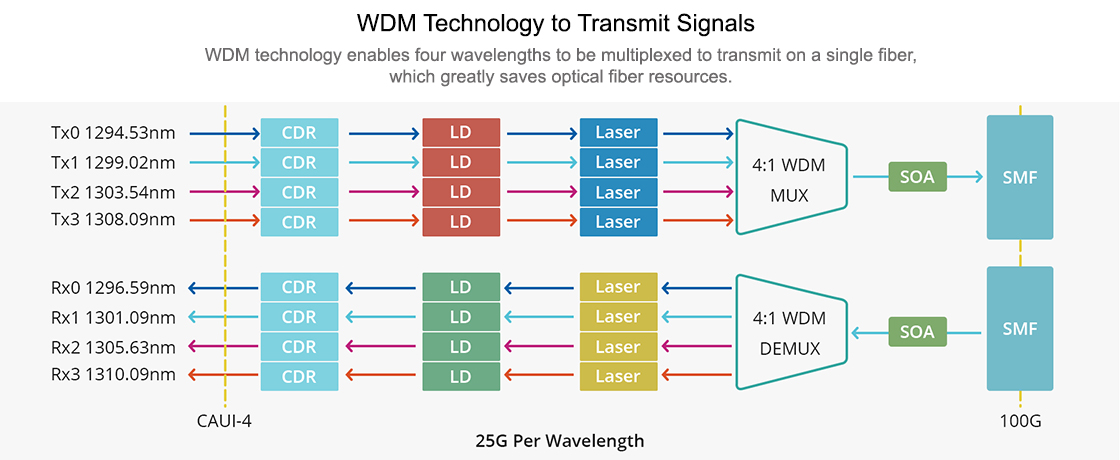

Wavelength Division Multiplexing (WDM)

Compatible Switches and Routers:
  • Cisco Catalyst 9500 Series (C9500-24Y4C)
  • Cisco Catalyst 9500 Series (C9500-48Y4C)
  • Cisco Catalyst 9500 Series (C9500-32QC)
  • Cisco Catalyst 9500 Series (C9500-32C)
  • Cisco NCS 5000 Series (NCS-5011)
  • Cisco NCS 5000 Series (NCS-5001)
  • Cisco NCS 5000 Series (NCS-5002)
  • Cisco NCS 5500 Series (NC55-36X100G)
  • Cisco NCS 5500 Series (NC55-24X100G-SE)
  • Cisco NCS 5500 Series (NC55-18H18F)
  • Cisco NCS 5500 Series (NC55-24H12F-SE)
  • Cisco NCS 5500 Series (NC55-36X100G-A-SE)
  • Cisco NCS 5500 Series (NCS-5501)
  • Cisco NCS 5500 Series (NCS-5501-SE)
  • Cisco NCS 5500 Series (NCS-5502)
  • Cisco NCS 5500 Series (NCS-5502-SE)
  • Cisco NCS 5500 Series (NCS-55A1-36H-S)
  • Cisco NCS 5500 Series (NCS-55A1-24H)
  • Cisco NCS 5500 Series (NC55-36X100G-S)
  • Cisco NCS 5500 Series (NCS-55A1-36H-SE-S)
  • Cisco NCS 5500 Series (NC55-MPA-4H-S)
  • Cisco NCS 5500 Series (NC55-MPA-4H-HD-S)
  • Cisco NCS 5500 Series (NC55-MPA-1TH2H-S)
  • Cisco NCS 5500 Series (NCS-55A1-48Q6H)
  • Cisco NCS 5500 Series (NCS-55A1-24Q6H-S)
  • Cisco NCS 5500 Series (NC55-MPA-4H-HX-S)
  • Cisco NCS 5500 Series (NC57-24DD)
  • Cisco NCS 5500 Series (NC57-18DD-SE)
  • Cisco NCS 5500 Series (NCS-55A1-24Q6H-SS)
  • Cisco NCS 5500 Series (NC57-36H-SE)
  • Cisco NCS 5500 Series (NCS-57B1-6D24H-S)
  • Cisco NCS 5500 Series (NCS-57B1-5D24-SE)
  • Cisco NCS 5500 Series (NC57-MPA-2D4H-S)
  • Cisco NCS 5500 Series (NCS-57C3-MOD-S)
  • Cisco NCS 5500 Series (NCS-57C3-MOD-SE-S)
  • Cisco NCS 6000 Series (NC6-20X100GE-M-C)
  • Cisco NCS 6000 Series (NC6-20X100GE-L-C)
  • Cisco NCS 4000 Series (NCS4K-4H-OPW-QC2)
  • Cisco ASR 900 Series (N560-IMA2C)
  • Cisco Nexus 9300 Series (N9K-C93180YC-EX)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX)
  • Cisco Nexus 9300 Series (N9K-C9348GC-FXP)
  • Cisco Nexus 9300 Series (N9K-C93240YC-FX2)
  • Cisco Nexus 9300 Series (N9K-C9336C-FX2)
  • Cisco Nexus 9300 Series (N9K-C93108TC-EX)
  • Cisco Nexus 9300 Series (N9K-C93180LC-EX)
  • Cisco Nexus 9300 Series (N9K-C93108TC-FX)
  • Cisco Nexus 9300 Series (N9K-C9364C)
  • Cisco Nexus 9300 Series (N9K-C9332C)
  • Cisco Nexus 9300 Series (N9K-C93360YC-FX2)
  • Cisco Nexus 9300 Series (N9K-C93216TC-FX2)
  • Cisco Nexus 9300 Series (N9K-C93600CD-GX)
  • Cisco Nexus 9300 Series (N9K-C9316D-GX)
  • Cisco Nexus 9300 Series (N9K-C9364C-GX)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX3S)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX3)
  • Cisco Nexus 9300 Series (N9K-C9336C-FX2-E)
  • Cisco Nexus 9300 Series (N9K-C93108TC-FX3P)
  • Cisco Nexus 3000 Series (N3K-C3232C)
  • Cisco Nexus 3000 Series (N3K-C36180YC-R)
  • Cisco Nexus 3000 Series (N3K-C31108PC-V)
  • Cisco Nexus 3000 Series (N3K-C31108TC-V)
  • Cisco Nexus 3000 Series (N3K-C3636C-R)
  • Cisco Nexus 3000 Series (N3K-C3264C-E)
  • Cisco Nexus 3000 Series (N3K-C3132C-Z)
  • Cisco Nexus 3000 Series (N3K-C34180YC)
  • Cisco Nexus 3000 Series (N3K-C3408-S)
  • Cisco Nexus 3000 Series (N3K-C3432D-S)
  • Cisco Nexus 3000 Series (N3K-C3464C)
  • Cisco Nexus 3000 Series (N3K-C34200YC-SM)
  • Cisco Nexus 9500 Series (N9K-X97160YC-EX)
  • Cisco Nexus 9500 Series (N9K-X9636C-R)
  • Cisco Nexus 9500 Series (N9K-X9636C-RX)
  • Cisco Nexus 9500 Series (N9K-X9432C-S)
  • Cisco Nexus 9500 Series (N9K-X9732C-EX)
  • Cisco Nexus 9500 Series (N9K-X9732C-EX)
  • Cisco Nexus 9500 Series (N9K-X9736C-FX)
  • Cisco Nexus 9500 Series (N9K-X9736C-FX)
  • Cisco Nexus 9500 Series (N9K-X9736C-EX)
  • Cisco Nexus 9500 Series (N9K-X9788TC-FX)
  • Cisco Nexus 9500 Series (N9K-X9732C-FX)
  • Cisco Nexus 9500 Series (N9K-X96136YC-R)
  • Cisco Nexus 9500 Series (N9K-X9716D-GX)
  • Cisco Nexus 9500 Series (N9K-X9716D-GX)
  • Cisco Nexus 9500 Series (N9K-X9624D-R2)
  • Cisco Nexus 9200 Series (N9K-C92160YC-X)
  • Cisco Nexus 9200 Series (N9K-C92300YC)
  • Cisco Nexus 9200 Series (N9K-C9236C)
  • Cisco Nexus 9200 Series (N9K-C92304QC)
  • Cisco Nexus 9200 Series (N9K-C92348GC-X)
  • Cisco ASR 9000 Series (A99-12X100GE)
  • Cisco ASR 9000 Series (A99-12X100GE-CM)
  • Cisco ASR 9000 Series (A9K-4X100GE)
  • Cisco ASR 9000 Series (A9K-8x100GE-TR-V2)
  • Cisco ASR 9000 Series (A99-4X100GE)
  • Cisco ASR 9000 Series (A99-32X100GE-TR)
  • Cisco ASR 9000 Series (A9K-16X100GE-TR)
  • Cisco ASR 9000 Series (ASR-9901)
  • Cisco ASR 9000 Series (A9K-20HG-FLEX-SE)
  • Cisco ASR 9000 Series (A9K-20HG-FLEX-TR)
  • Cisco ASR 9000 Series (A9K-8HG-FLEX-SE)
  • Cisco ASR 9000 Series (A9K-8HG-FLEX-TR)
  • Cisco ASR 9000 Series (A99-32X100GE-X-SE)
  • Cisco ASR 9000 Series (A99-32X100GE-X-TR)
  • Cisco ASR 9000 Series (A99-32HG-FC)
  • Cisco ASR 9000 Series (A9K-20HG-FLEX-FC)
  • Cisco ASR 9000 Series (A9K-8HG-FLEX-FC)
  • Cisco ASR 9000 Series (A99-16X100GE-X-SE)
  • Cisco ASR 9000 Series (ASR-9903)
  • Cisco ASR 9000 Series (A9903-20HG-PEC)
  • Cisco ASR 9000 Series (A99-10X400GE-X-TR)
  • Cisco ASR 9000 Series (A99-10X400GE-X-SE)
  • Cisco ASR 9000 Series (A9K-4HG-FLEX-TR)
  • Cisco ASR 9000 Series (A9K-4HG-FLEX-SE)
  • Cisco ASR 9000 Series (A99-4HG-FLEX-TR)
  • Cisco ASR 9000 Series (A99-4HG-FLEX-SE)
  • Cisco ASR 9000 Series (ASR-9902)
  • Cisco ASR 1000 Series (EPA-QSFP-1X100GE)
  • Cisco ASR 903 Series (A900-IMA2C)
  • Cisco NCS 4200 Series (NCS4200-2H-PQ)
  • Cisco NCS 540 Series (N540-24Z8Q2C-SYS)
  • Cisco NCS 540 Series (N540-ACC-SYS)
  • Cisco NCS 540 Series (N540X-ACC-SYS)
  • Cisco NCS 540 Series (N540-24Z8Q2C-M)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-A)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-D)
  • Cisco NCS 540 Series (N540-28Z4C-SYS-A)
  • Cisco NCS 540 Series (N540-28Z4C-SYS-D)
  • Cisco NCS 540 Series (N540-FH-CSR-SYS)
  • Cisco NCS 540 Series (N540-24Q8L2DD-SYS)
  • Cisco NCS 560 Series (N560-IMA-2C)
  • Cisco NCS 560 Series (N560-IMA-2C-DD)
  • Cisco Catalyst 9600 Series (C9600-LC-24C)
  • Cisco Nexus 7700 Series (N77-M312CQ-26L)
  • Cisco Nexus 7700 Series (N77-F430CQ-36)
  • Cisco 8000 Router Series (8201-SYS)
  • Cisco 8000 Router Series (8202-SYS)
  • Cisco 8000 Router Series (8800-LC-36FH)
  • Cisco 8000 Router Series (8800-LC-48H)
  • Cisco 8000 Router Series (8201-32FH)
  • Cisco 8000 Router Series (88-LC0-36FH-M)
  • Cisco 8000 Router Series (88-LC0-36FH)
  • Cisco Catalyst 8500 Series (C8500-12X4QC)
  • Cisco Catalyst 9300X Series (C9300X-NM-2C)

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 Write a review.

  0 of 0 people found the following review helpful:

5 of 5 Excellent products. Tuesday, October 22, 2024
Reviewer: Adam from Raleigh, NC
We bought QSFP28-100G-ER4-40KM modules for  Cisco ASR 9000 Series and Cisco NCS 5000 Series, we tried a couple before bulk ordering.  We will buy from Compufox again. Excellent products and excellent customer service.
