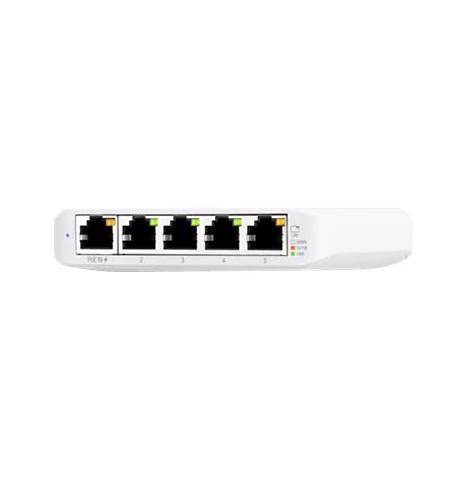

The USW-Flex-Mini-3 is a 5-port, Layer 2 managed Gigabit switch with 4 Gigabit RJ45 ports and 1 PoE input port. It features a non-blocking throughput of 5 Gbps, a switching capacity of 10 Gbps, and a forwarding rate of 7.44 Mpps. Power options include 5V USB-C or 802.3af/at PoE, with a max power consumption of 2.5W. The switch measures 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83 inches).

Key Specifications

• Ports: 5x 10/100/1000 Mbps RJ45 ports.
• Throughput: 5 Gbps non-blocking throughput.
• Switching Capacity: 10 Gbps.
• Forwarding Rate: 7.44 Mpps.
• Power Method: USB Type C (5V) or 802.3af/at PoE (44-57VDC).
• Power Consumption: Max 2.5W.
• Dimensions: 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83 inches).
• Management: Ethernet In-Band.
• Enclosure: Polycarbonate.
• Certifications: CE, FCC, IC.
