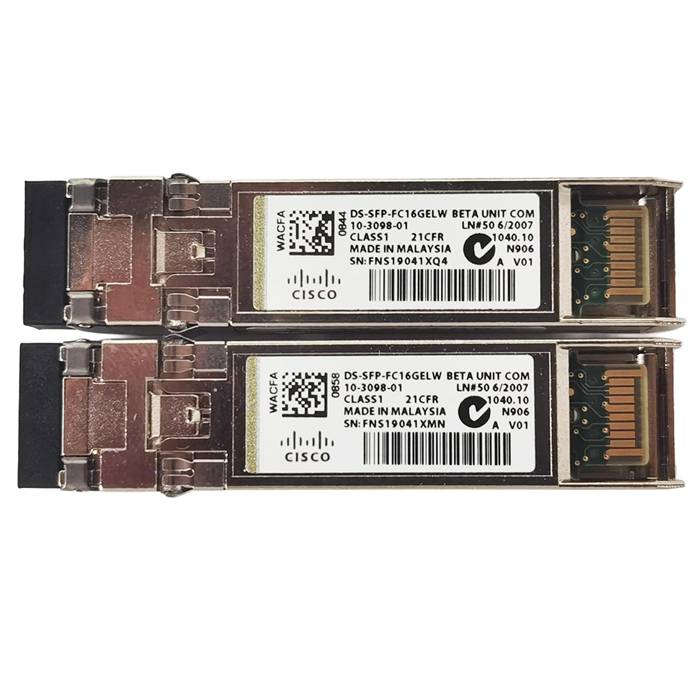

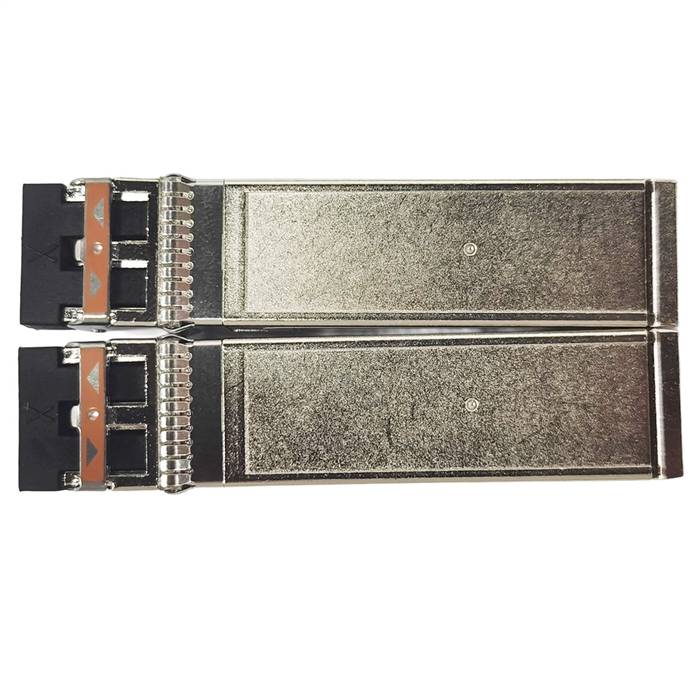

Cisco DS-SFP-FC16GELW 10-3098-01 CMUIAK8CAA 16Gbps 25Km ELW Fiber Channel SFP+ Module

This Cisco DS-SFP-FC16GELW SFP+ transceiver provides 16GBase-LW Fibre Channel throughput up to 25km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. This transceiver is Trade Agreements Act (TAA) compliant.

Specifications

• Part Number: DS-SFP-FC16GELW
• Wavelength (nanometers): 1310nm
• Fiber Type: SMF
• Core Size (microns): 9.0
• Speed (Gbps): 14.025 / 8.5 / 4.25
• Cable Distance: 15.5 mi (25 km)
• Average Transmit Power (dBm)
  • Maximum: 5.0
  • Minimum: -2.0
• Average Receive Power (dBm)
  • Maximum: 2.0
  • Minimum: -14.0
• Fiber Loss Budget (dB): 10 (16 Gbps)
• Operating temperature: 0°C ~ 70°C
• Storage temperature: -40°C ~ 85°C
