Quad-port Gigabit Ethernet server adapter designed for multi-core processors and optimized for Virtualization & Unified Networking Environments.

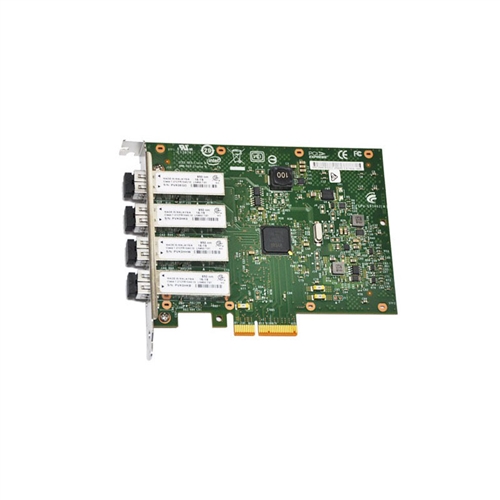

Based on the new Intel® 82580 Gigabit Ethernet Controller, the Intel® Ethernet Server Adapter I340-F4 is Intel's fourth generation of PCIe* GbE adapter. This adapter showcases the industry’s first fully integrated quad-port PCIe* Gen2 GbE controller, providing a smaller footprint and lower power dissipation. In addition, the Intel® Ethernet Server Adapter I340-F4 offers advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI Express* Gen 2.0 interface. Intel’s first eco-friendly halogen-free board combines low-power and cost for the best price/performance ratio in a quad-port solution available today. Halogen-Free
Essentials - Product Name: Intel E1G44HF Ethernet Server Adapter I340-F4
- Launch Date: Q1'11
- Vertical Segment: Server
- Cable Medium: Fiber
- Cabling Type: MMF 50um up to 550m; MMF 62.5um up to 275m
- Bracket Height: Full Height
- TDP: 4.5 W
- Product Code: E1G44HF, E1G44HFBLK
- Supported Operating Systems: Windows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Windows XP Professional, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux* 5, 6, SUSE Linux Enterprise Server* 10, 11, FreeBSD 9*, , VMware ESX/ESXi*
Networking Specifications - Port Configuration: Quad
- Intel® Virtualization Technology for Connectivity (VT-c): VMDq
- Speed & Slot Width: 5 GT/s, x4 Lane
- Controller: Intel 82580
Package Specifications - System Interface Type: PCIe v2.0 (5.0 GT/s)
Advanced Technologies - Storage Over Ethernet: iSCSI, NFS
|
|
|
 |
|
 |
|
