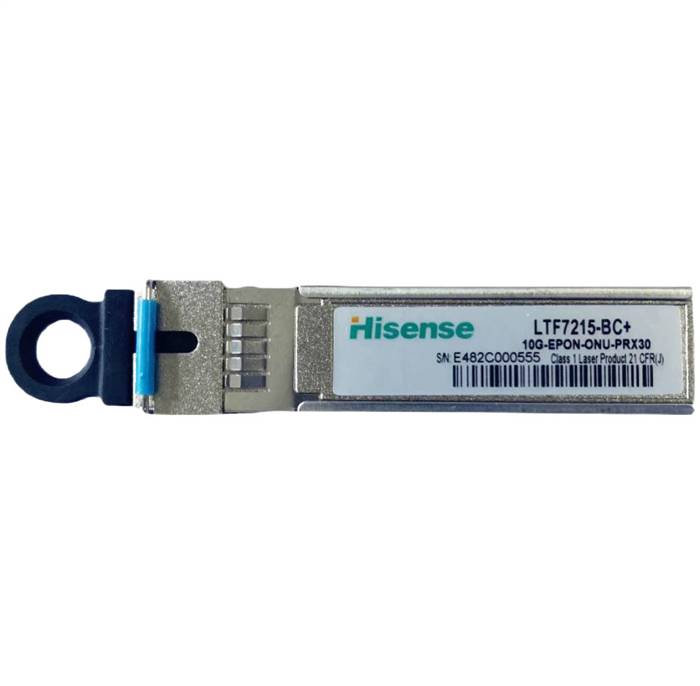

Hisense LTF7215-BC+ 10G EPON ONU SFP+ Transceiver Module

The LTF7215-BC+ is a 10G EPON ONU Transceiver module which has been designed for low cost Point-to-MultiPoint (P2MP) Fiber to the Home (FTTH), Building or Curb (FTTx) applications employing CW Downstream at 10.3125Gb/s and 1.25Gb/s Burst Mode Upstream.

Applications

• Gigabit Ethernet Access networks
• Fiber to the Home
• Fiber to the Building
• Fiber to the Curb

Features

• Dual Wavelength Bidirectional Transceiver
• Single Fiber, Full Duplex Operation
• 20km Reach
• 1.25Gb/s Tx Burst Mode Data Rate
• 10.3125Gb/s Rx CW Data Rate
• BER≤10-3, 10.3125 Gb/s, PRBS 231-1
• 1310nm DFB Laser
• 1577nm APD/TIA Receiver
• Single 3.3V DC supply
• 2x10 SFP+ package outlines
• SC receptacle optical connecto

Specifications

• Product Name: 10G EPON ONU
• Part Number: LTF7215-BC+
• Package: SFP+
• Interface: SC/UPC
• Reach: 20km
• Temp: C
• Tx Output: 0.62~5.62dBm
• Tx Rate: 1.25Gb/s
• Tx Wavelength: 1310nm
• Rx Input: -28.5dBm
• Rx Rate: 10.3125Gb/s
• Rx Wavelength: 1577nm
