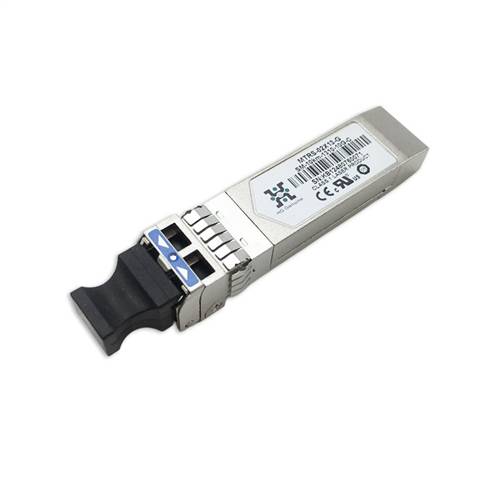

MTRS-02X13-G is a high performance, cost effective module, which is supporting data rate up to 10.3125Gbps, and transmission distance up to 10km over single mode fiber. The transceiver consists of two sections: The transmitter section incorporates a 1310nm DFB TOSA and laser driver. The receiver section consists of a PIN photodiode integrated with a transimpedance amplifier (TIA) and limiting amplifier (LA). The module is hot pluggable into the 20-pin connector. The high-speed electrical interface is base on low voltage logic, with nominal 100 Ohms differential impedance and AC coupled in the module.

The optical output can be disabled by LVTTL logic high-level input of TX_DIS. Transmit Fault (Tx_Fault) is provided to indicate that the module transmitter has detected a fault condition related to laser operation or safety. Loss of signal (RX_LOS) output is provided to indicate the loss of an input optical signal of receiver. A serial EEPROM in the transceiver allows the user to access transceiver monitoring and configuration data via the 2-wire SFP Management Interface. as specified in SFF-8472.
