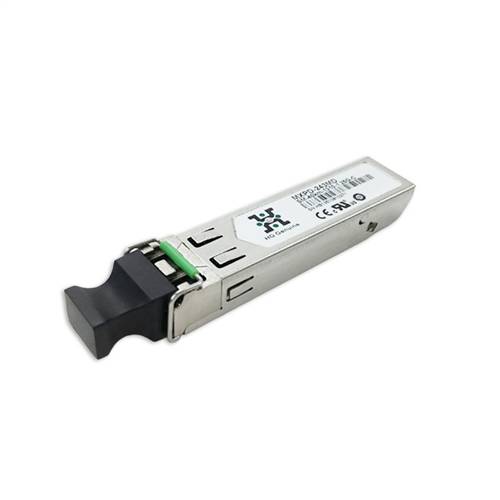

HGTECH 1.25G 1310nm 40km SMF SFP Fiber Module
MXPD-243MD - Genuine HGTECH MXPD-243MD

Alternative Views:
Our Price: $20.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: MXPD-243MD
Qty:

Description

General Information
  • Manufacturer: HG Genuine (HGTECH)
  • MPN: MXPD-243MD
  • Transceiver Type: 1000 BASE_LX_SFP
  • Connector Type: LC
  • Wavelength (nm): 1310
  • Transfer Distance (m): 40000 (9um)
  • Digital Diagnostic Monitoring: Yes
Diagnostic information
  • Temperature (°C): 31.75
  • Temp High Threshold (°C): 80.00
  • Temp Low Threshold (°C): -10.00
  • Voltage (V): 3.26
  • Volt High Threshold (V): 3.60
  • Volt Low Threshold (V): 3.00
  • Bias Current (mA): 16.37
  • Bias High Threshold (V): 85.00
  • Bias Low Threshold (V): 0.00
  • RX Power (dBM): -37.37
  • RX Power High Threshold (dBM): -2.99
  • RX Power Low Threshold (dBM): -23.00
  • TX Power (dBM): -2.19
  • TX Power High Threshold (dBM): 0.08
  • TX Power Low Threshold (dBM): -5.19
Compatibility
  • Apply to Huawei MA5600T MA5800 GPON OLT main control and upstream board, typically SCUN, MCUD, MCUD1, GICF, MPLA, MPLB, MPSC
  • Apply to Huawei SX700, SX300 series campus switch CE series data center switch
  • Apply to Huawei OSN3500 series EOS board, EGS2, EGT2, EGS4; Packet Processing board, PEG
  • Apply to Huawei OSN8800 series Client side Tributary board, TOG, TOM, Tranponder board, LQG, LOG, LQM, LOM
