H3C 40GBASE-CSR4 QSFP+ 850nm 400m DOM MTP/MPO MMF Optical Transceiver Module

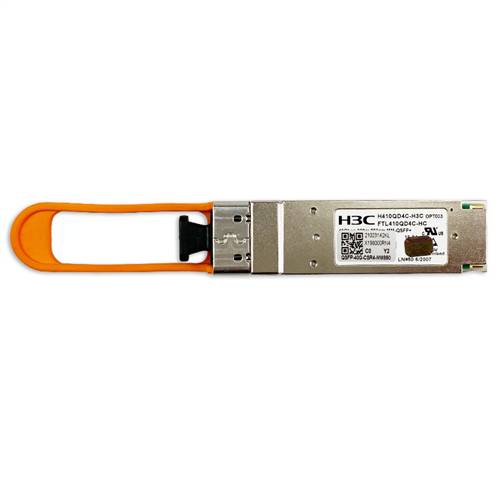

QSFP-40G-CSR4-MM850 - Genuine H3C QSFP-40G-CSR4-MM850

Alternative Views:
Our Price: $260.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: QSFP-40G-CSR4-MM850
Qty:

Description

The H3C QSFP-40G-CSR4-MM850 QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 400m over multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and IEEE 802.3ae 10GBASE-SR standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core, distribution layers.

Specifications
  • Manufacturer: H3C
  • Part Number: QSFP-40G-CSR4-MM850
  • Form Factor: QSFP+
  • Max Data Rate: 42Gbps (4×10.5Gbps)
  • Connector: MTP/MPO-12 Male
  • Cable Type: MMF
  • Wavelength: 850nm
  • Max Cable Distance: 400m@OM4
  • Transmitter Type: VCSEL 850nm
  • Receiver Type: PIN
  • TX Power: -7.5~0dBm
  • Receiver Sensitivity: <-9.9dBm
  • Powerbudget: 2.4dB
  • Receiver Overload: 2.4dBm
  • Power Consumption: <1.2W
  • Extinction Ratio: >3dB
  • DDM/DOM: Supported
  • Transmit and Dispersion Penalty: 3.5dB
  • Modulation Format: NRZ
  • Packaging Technology: COB (chip on board) Packaging
  • Host FEC: Supported
  • EMC (Electro Magnetic Compatibility): Supported
  • Bit Error Ratio (BER): 1E-12
  • Operating Temperature Range: 0 to 70°C (32 to 158°F)
  • Protocols: 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant
  • Application: 40GBASE-SR4 40G Ethernet, Breakout to 10GBASE-SR Ethernet, Data Center
