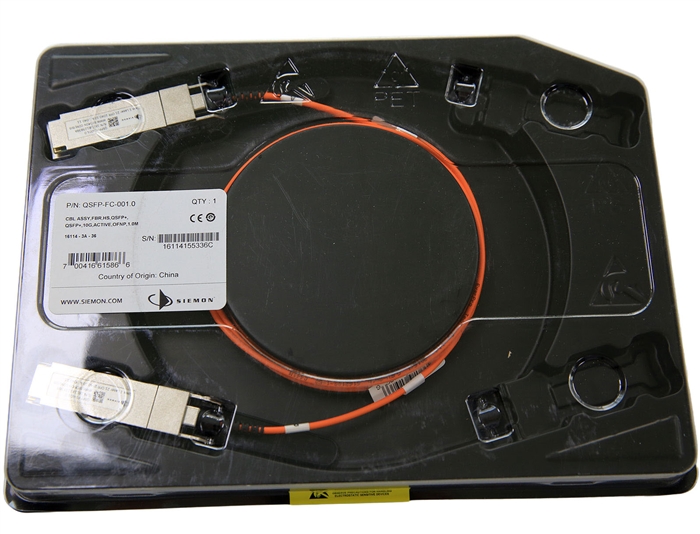

Siemon QSFP-FC-001.0 QSFP+ to QSFP+ Active Optical Cable Assembly, 1.0m (3.28 ft)

Siemon 40Gb/s Low Power Active Optical Cable (AOC) assemblies offer a cost-effective, extended reach option for high-speed data center interconnects. These AOC assemblies incorporate integrated opto-electronics with four fiber optic transceivers per end, each operating at data rates from 1 to 10.5 Gb/s and supporting a reach up to 100 meters. The cable is available in a number of standard lengths up to 100 meters.

AOC's offer customers the flexibility of traditional optical modules by interfacing to systems via a standard QSFP+ MSA, SFF-8436 connector. The cable is electrically compliant with the SFP+ interface supporting InfiniBand, Ethernet, Fiber Channel and other applications. The QSFP+ connector includes the Digital Diagnostic Monitoring Interface (DDMI).

Applications

• Infiniband SDR, DDR ,QDR
• Ethernet 40G BASE-SR4
• Fiber Channel 4G, 8G, 10G
• Top-of-Rack
• Switch-to-Switch
• Switch-to-Server
• Networking
• Storage
• Hubs
• Routers
• Servers
• NIC

Specifications

• Part Number: QSFP-FC-001.0
• Cable Length: 1.0m (3.28 ft)
• Connector (each end): QSFP+
• Cable Type: OM2 LSOH
• Minimum Bend Radius: 15xDIA - Dynamic, 10xDIA - Static
• Minimum Cable Assembly Bend Radius: Cable and Connector: 56mm (2.20 in.)
• Cable OD: 3mm +/- .1mm (.012 in.)
• Channels: 4 Lanes, bi-directional
• Date Rate: 10.5 Gbps/ channel Max
• Operating Optical Wavelength: 850nm
• Operating Temperature: 0 to 70° C (32 to 158° F)
• Storage Temperature: -25 to 75° C (-13 to 167° F)

Standards Compliance

• IBTA V2 Revision 1.3, IEEE 802.3ba
• SFF-8436, SFF-8363
• RoHS-6 (lead free)
• Class 1 laser product per IEC 60825-1
• IEEE 802.3ba
