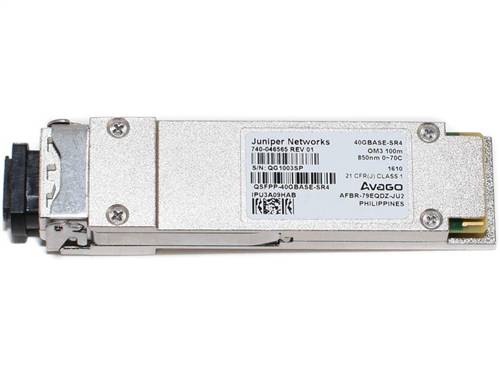

Juniper 40GE QSFP+ SR4 Pluggable Optics module, 740-046565
QSFPP-40GBASE-SR4 - Genuine Juniper 740-046565

Alternative Views:
Our Price: $120.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: QSFPP-40GBASE-SR4
Qty:

Description

Specifications
  • Product Number: QSFPP-40GBASE-SR4
  • Product Name: 40GE QSFP+ SR4 Pluggable Optics module
  • Part Number: 740-067443, 740-046565
  • Speed: 40 Gigabit Ethernet
  • Transceiver Type: QSFP+
  • Product Type: Optical Transceiver
  • Connector: MPO-12
  • Monitoring Available: Yes
  • Digital Optical Monitoring: Yes
  • Standard: 40GBASE-SR4
  • Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4): IEEE 802.3ba-2010
  • Diagnostic support
  • Laser bias current–supported
  • RX input power–supported
  • Case temperature–supported
  • Power supply voltage–supported
  • Laser output power–not supported
  • Transmitter wavelengths (range): 840 nm through 860 nm
  • Transmitter output power, each lane (minimum)–7.6 dBm (per lane)
  • Transmitter output power, each lane (maximum): 2.4 dBm (per lane)
  • Receiver input power, each lane (minimum): -9.5 dBm
  • Receiver input power, each lane (maximum): 2.4 dBm
  • Cable type: MMF
  • Fiber grade: OM3
  • Distance: 100 m
  • Operating Temperature (range): 0° C to 70° C
  • Storage temperature: –40° C to 85° C
