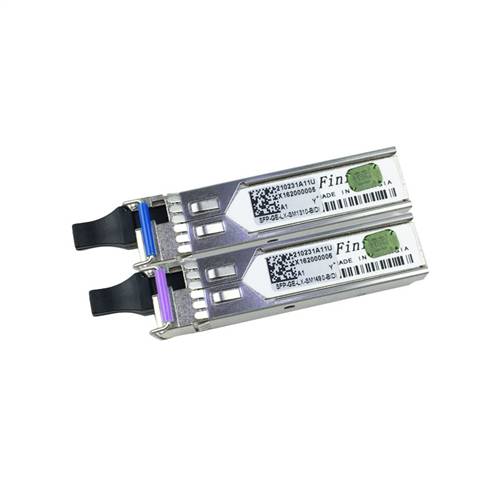

H3C 1000BASE-BX-U BiDi SFP 1310nm-TX/1490nm-RX 10km DOM LC SMF Transceiver Module
SFP-GE-LX-SM1310-BIDI - Genuine H3C SFP-GE-LX-SM1310-BIDI

Alternative Views:


Our Price: $160.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: SFP-GE-LX-SM1310-BIDI
Qty:

Description

This H3C SFP-GE-LX-SM1310-BIDI is a high performance and cost effective small form factor pluggable (SFP) Bi-directional transceiver for 1000BASE-BX Gigabit Ethernet and 1G Fibre Channel application. It is fully comply with the SFP Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment. The 1000BASE-BX SFP optics provide 10km high-speed data links using a single strand of fiber, which can upgrade transmission capacity very convenient without installing new fibers. The SFP transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Features
  • Genuine H3C SFP-GE-LX-SM1310-BIDI
  • Support Up to 1.25Gb/s data links
  • Up to 10km on single 9/125µm SMF
  • Compliant with SFP MSA standard
  • Compliant with IEEE 802.3z
  • Hot-pluggable SFP footprint
  • Single 3.3V power supply
  • Simplex LC connector
  • 1310nm FP laser transmitter/1490nm InGaAs PIN receiver
  • Low power dissipation
  • Metal enclosure provides lower EMI
  • ROHS compliant and Lead-Free

Specifications
  • Form Factor: BIDI SFP
  • Data Rate: 1.25Gb/s
  • Wavelength: TX:1310nm/RX:1490nm
  • Fiber Type: SMF
  • Connector: Single LC
  • Max Distance: 10 km
  • Optical Components: FP/PIN
  • Transmitter Power: -9 ~ -3 dBm
  • Receiver Sensitivity: < -22 dBm
  • DOM Support: Yes
  • Operating Temperature: 0°C to 70°C
  • Storage Temperature: -40°C to 85°C
  • Weight: 0.025 kg
  • Protocols: IEC/EN 61000-4-2,IEC-60825, FDA 21CFR 1040.10 and 1040.11
