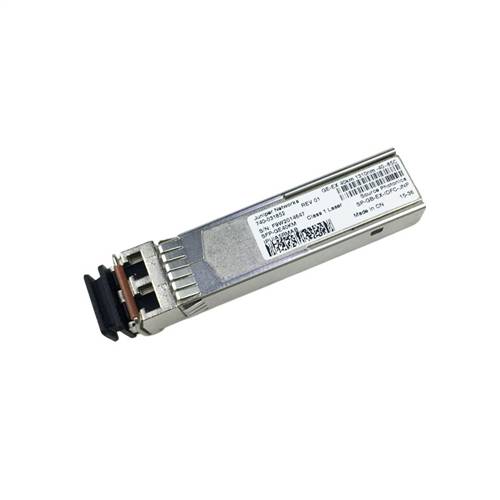

Genuine Juniper 1Gbps 1000Base-EX 1310nm SMF 40km Duplex LC SFP Transceiver Module 740-031852
Genuine Juniper SFP-GE40KM

Alternative Views:
Our Price: $75.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: SFP-GE40KM
Qty:

Description

Juniper Networks SFP-GE40KM is a high performance and cost effective small form factor pluggable (SFP) transceiver for 1000BASE-EX Gigabit Ethernet and 1G Fiber Channel application. It is fully comply with the SFP Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment. The SFP transceiver consists of the below sections: the LD driver, the limiting amplifier, the 1310nm DFB laser and the PIN photo-detector. The SFP transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Features
  • Genuine Juniper SFP-GE40KM
  • Far less price than OEM transceiver
  • Built-in digital diagnostic monitoring interface for real-time monitoring of operating parameters
  • Single 3.3V power supply
  • Low power dissipation
  • ROHS compliant and Lead-Free

Specifications
  • Part Number: SFP-GE40KM
  • Form Factor: SFP
  • Data Rate: 1.25Gb/s
  • Wavelength: 1310 nm
  • Fiber Type: SMF
  • Max Distance: 40 km
  • Optical Components: DFB/PIN
  • Transmitter Power: -5 ~ 0 dBm
  • Extinction ratio: > 9 dB
  • Receiver Sensitivity: < -24 dBm
  • Receiver Overload: > 0 dBm
  • Connector: LC Duplex
  • Digital Diagnostic Monitoring: YES
  • Operating Temperature: 0°C to 70°C
  • Storage Temperature: -40°C to 85°C
  • Weight: 0.025 kg
  • Application: 1x Fiber Channel, Switch to Switch Interface Gigabit Ethernet, Switched Backplane Applications, Router/Server Interface, Other Optical Links
  • Compliance
    • IEC/EN 61000-4-2,IEC-60825
    • FDA 21CFR 1040.10 and 1040.11
    • RoHS

Platforms Supported
  • E120,
  • E320,
  • ERX310,
  • ERX705,
  • ERX710,
  • ERX1410,
  • ERX1440,
  • MX240,
  • MX480,
  • MX960
