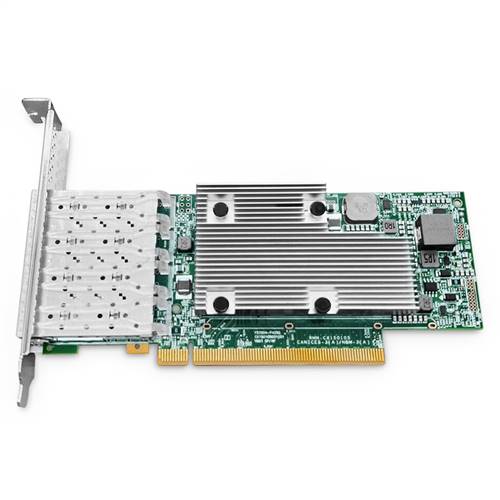

Broadcom® BCM957504-P425G Ethernet Network Interface Card, 25G Quad-Port SFP28, PCIe 4.0 x 16
Broadcom® BCM957504-P425G Ethernet Network Interface Card, 25G Quad-Port SFP28, PCIe 4.0 x 16

Alternative Views:
Our Price: $645.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Days


Product Code: BCM957504-P425G
Qty:

Description

Broadcom® BCM957504-P425G Ethernet Network Interface Card, 25G Quad-Port SFP28, PCIe 4.0 x 16, Tall&Short Bracket.

The Broadcom® BCM957504-P425G is a quad-port 25 Gb/s PCI Express 4.0 x16 network interface card that supports SFP28/SFP+ optical modules and copper direct-attach cables. The card uses the Broadcom BCM57504 100GbE MAC controller with an integrated quad-channel 25GbE SFI transceiver. It supports RoCE, SDN, and NFV for efficient network management.
Based on Broadcom’s scalable 10/25/40/50/100/200G Ethernet controller architecture, the P425G 4x25G PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation, and data analytics.

Specifications

Ports Quad

ASIC BCM57504

Data Rate Per Port 25/10GbE

System Interface Type PCIe 4.0 x 16

Connector Type SFP28

Bracket Height Full Height and Low Profile

RoCE Yes

SR-IOV Yes

NVGER Yes

GENEVE Yes

VXLAN Yes

DPDK Yes

NPAR Yes

NVMe-oF Yes

TSO Yes

OS Support Microsoft Windows, Red Hat Enterprise Linux, and so on

Operating Temperature 0 to 55 °C (32 to 131 °F)

Storage Temperature -40 to 70 °C (-40 to 158 °F)


Product Spotlights

  • Networking and Virtualization
    • RDMA over Converged Ethernet (RoCE)
    • IEEE-1588v2 and Time Sync
    • Multi-Queue, NetQueue, and VMQ
    • Single Root I/O Virtualization
    • VXLAN, GRE, NVGRE, Geneve
    • Tunnel-aware Stateless Offloads
    • Edge Virtual Bridging (EVB)
  • Stateless Offloads and Flow Processing
    • Large Send and Receive Offload V1 and V2
    • IP/TCP/UDP Checksum Offload
    • Generic Receive Offload
    • Transmit and Receive Side Scaling
    • Accelerated RFS
    • NAT and NAPT
  • Manageability and Platform Security
    • Network Controller Sideband Interface (NC-SI)
    • Management Component Transport
    • Protocol (MCTP)
    • MCTP over SMBus
    • NC-SI, PLDM over MCTP
    • Silicon Root of Trust (ROT)
    • Secure Firmware Update and Loading

Connectivity Solutions

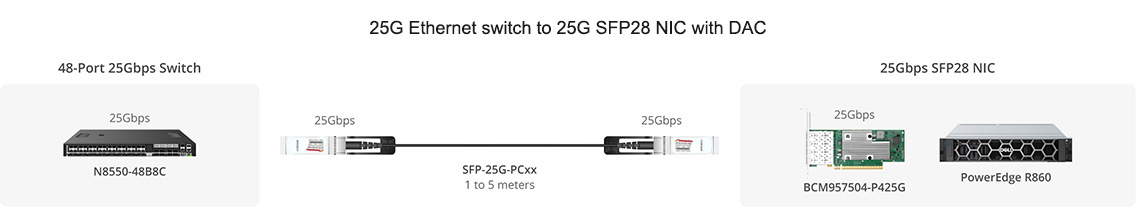

25G Ethernet Switch to 25G SFP28 NIC with DAC

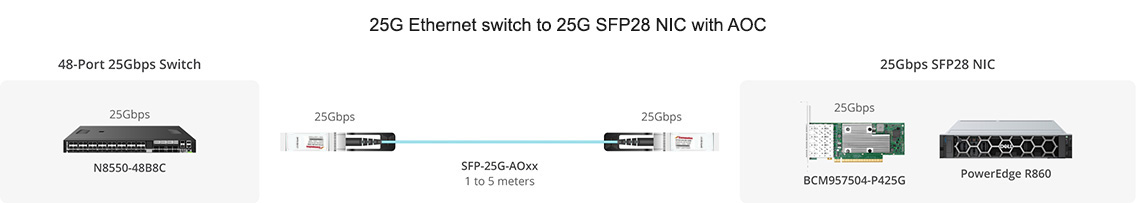

25G Ethernet Switch to 25G SFP28 NIC with AOC

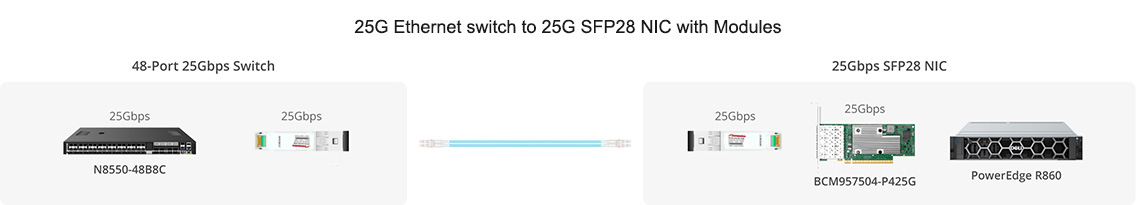

25G Ethernet Switch to 25G SFP28 NIC with Modules

Features

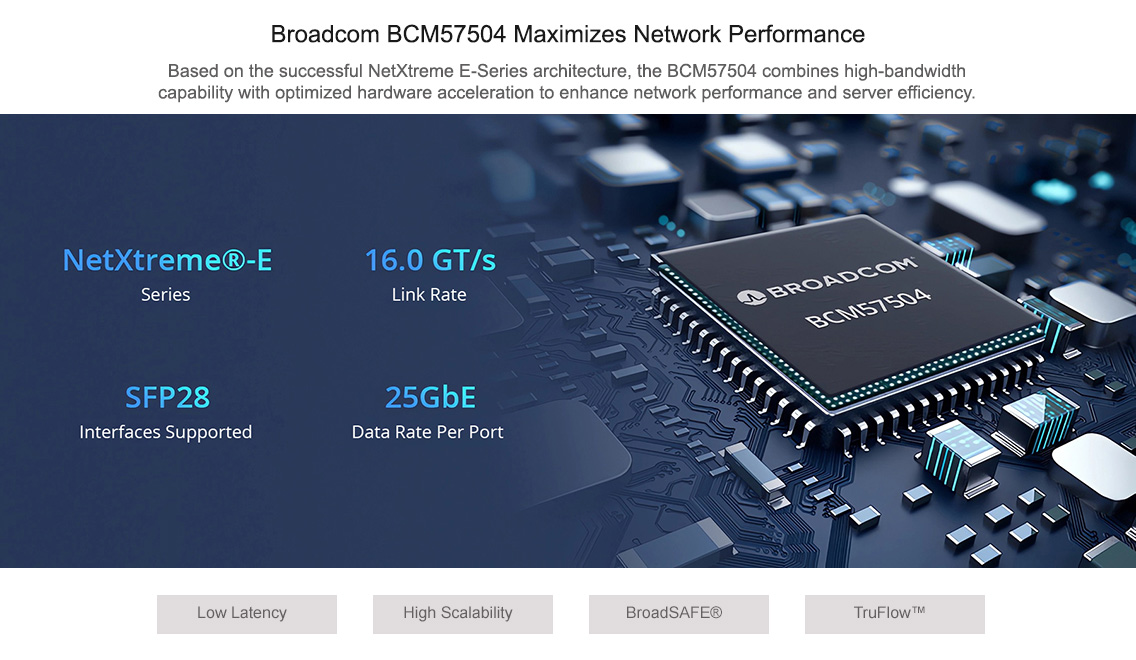

Broadcom BCM57504 Maximizes Network Performance

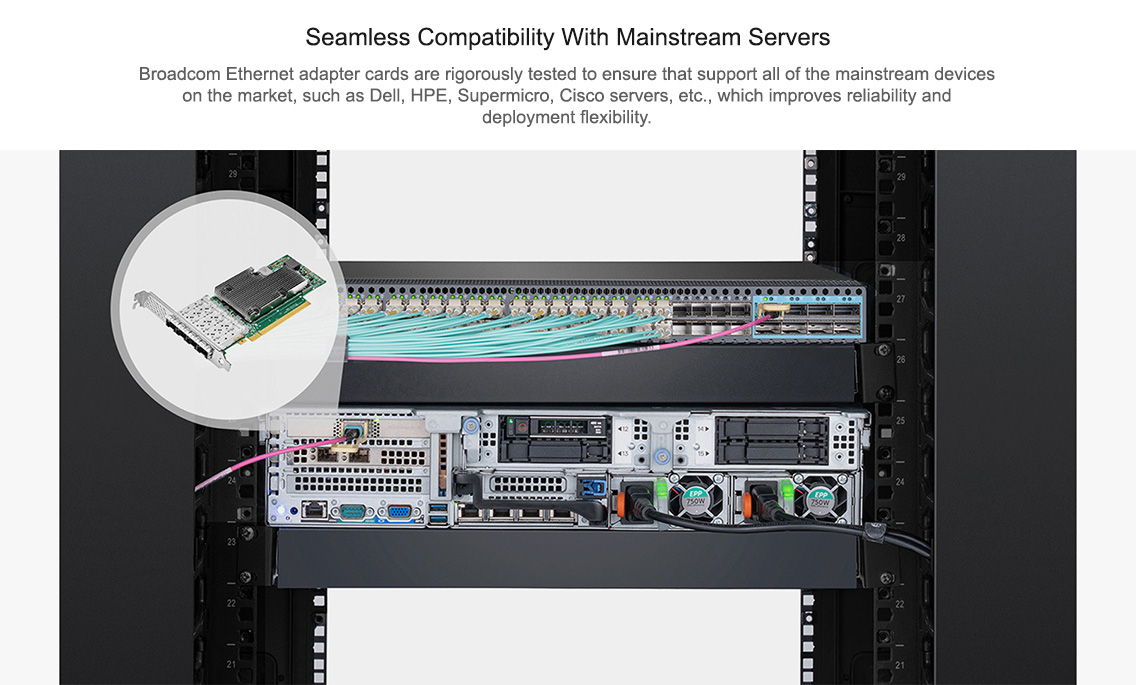

BCM957504-P425G Seamless Compatibility With Mainstream Servers

BCM957504-P425G Supporting All Major OS Distributions
